Textile Machinery Coil Winding Machine Wire Guide Heads Nt004 Wire Jump Preventer

US$1.80
10-499 Pieces
US$1.50
500+ Pieces

Basic Info.

Match Machine
Weaving Equipment
Material
99%Al2O3 with Steel Ball
Processing Level
Precision Finishing
Mechanical Process
CNC
Processing Trade
Processing with Material Supplied
Certification
CE, ISO9001: 2000
Customized
Customized
Condition
New
After-sales Service
1 Year
Function
Prevent The Wire Jumping out
Bearing
High Speeding Bearing
Polish
Fine Polish Degree Ra0.2
Screw Dia
M4
Machine Type
Wire Drawing Machine
Brand Name
Hartai
Delivery Date
2-5days
Weight
14G
Color
Pink & Red
Transport Package
200 PCS/Bag
Specification
custom as per your request
Trademark
hartai
Origin
Shenzhen
HS Code
9001100001
Production Capacity
50000

Product Description

Specifications

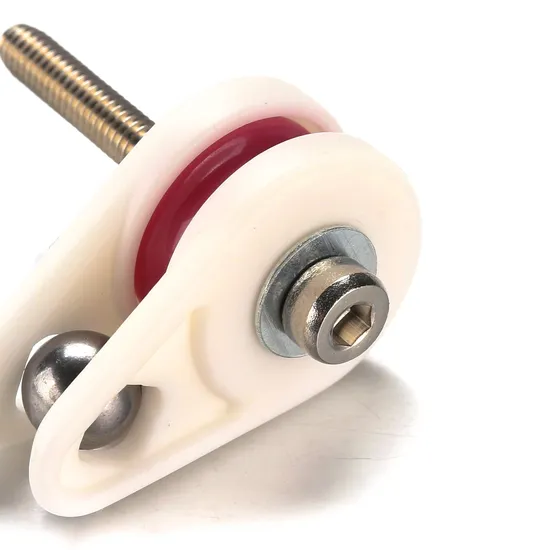

Ceramic Wire Jump Preventer to Ensure Tension Stability
1.This wire jump preventer is used for a radical change of direction and adequate guidance and also prevent the wire jumping during winding process.
2.There is a high-speed bearing in its porcelain circle which controls the sliding distance between enameled wire and the circle under 0.2mm.
3.It also protect the film and assure the beating of the enameled wire in a very small scope to stabilize the tension.
4.Ourpreventers are popular in the market for easy installation, low maintenance cost, robust construction and longer service life.
Specification
Model Weight (g) Screw Dia. L L1 L2 H h Groove deep
HT001 4 M2 X 18 21 8 10.6 8 3 2.4
HT002 7.5 M4 26 10 13.5 8 3 2.5
HT003 13.5 M4 X 24 35 10 18 10 0 x
HT004 4 M2 X 18 20 8 9.4 8 3 2.6
HT005 2 M2 X 18 15 6 7 5.5 2.5 2
HT006 2 M2 X 18 15 8 7 5.4 3 2.6
HT007 14 M4 X 18 33 20 13 12 4 2.6

Orther products
Company file
DeFuLi Co. Ltd with over 19 years'experience in winding air core self-bonding coil, inductor coil, toy coil, rfid coil, sensor coil,
wireless charge coil, you can rest assured that Custom Coils can successfully meet your detailed specifications.
We sincerely hope to get your inquiry of this micro inductive coil! If any questions, please feel free to contact us.
