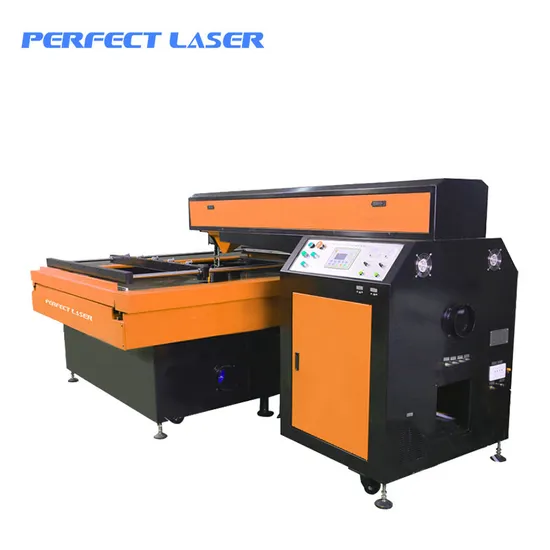

Perfect Laser Automatic 300W 400W Plywood MDF Bamboo Wood Acrylic Organic Glass Plastic PVC Die Board CO2 Laser Cutter Cutting Machines Price

Product Description

Perfect Laser Automatic 300W 400W Plywood MDF Bamboo Wood Acrylic Organic Glass Plastic PVC Die Board CO2 Laser Cutter Cutting Machines Price

Contact: Crystal Product Description
Perfect Laser is the world famous manufacturers for die board laser cutting machine.
Perfect laser die cutting machine is specialized in cutting die board up to 20mm-25mm, with high efficiency, excellent quality, low maintenance and low running cost, widely applicable for packaging, advertising Industry. We provide 300w laser cutting machine and 400w laser cutting machine for you to choose.

Application
1. Applied Field for die board laser cutting machine :
Available Materials: It's mainly used in thick MDF cutting, wood cutting, bamboo cutting, plywood cutting. It also can be used for acrylic cutting, organic glass cutting, plastic cutting, PVC board cutting, plexiglass cutting etc. materials cutting.

2.Application Industry: packages, advertisement, handicrafts and other industries.

Product Features
1. Adopt automatic following and focusing system,and it can automatically senses the distance from cutting head to die board surface and adjust the focus distance to keep a good cutting quality.
2. The die cutting machine also can be called plywood cutting machine.It is for die board install 2pcs Chinese Top Quality 150W CO2 laser tube, the watt is 1/10 of larger power cutting machine, low power consumption.
3. Advanced double laser heads coaxial cutting technology, which makes the plywood cutting machine can cut both sides of the die board in the same axle, enhance the whole process efficiency.
4. Germany Imported ball screw rod and Taiwan linear guide rail, matched 2D accurate working table insure the high stability of the cutting performance.
5. Tempering heat treated lathe bed, which isn't easy to be deformed.
6. The thickness of 15MM, 18MM, 20MM, 25MM die-board can be cut arbitrary width by the plywood cutting machine, such as 0.45, 0.71, 1.05, 1.42 etc. Kerf uniform, consistent from top to bottom seam. Once turned on, the machine can work without waiting time.
7. The wooden die board laser cutting directly with compressed air, and the plywood cutting machine doesn't need to buy any other inactive gas, greatly lowered the users operation cost.
8. Adopt profession software, which is particularly designed for die cutting machine, with high compatibility, support any computer operating system.
9. Easy Operation, Stable performance and applicable for nonmetal processing industry.
Machine Details

Technical Data

Model	PEC-0909	PEC-1215	PEC-1218
Cutting Table Size	900×900mm	1200×1500mm	1200×1800mm
Laser Type	CO2 Glass Laser Tube
Lifetime of Laser Tube	W8:≥10000 Hours W6:>15000 Hours
Cooling Mode	Water Cooling and Protection System
Cutting Speed	0-6000mm/min
Repeated Position Precision	±0.01mm
Maximum Cutting Depth	22mm
Cutting Width	0.35mm - 0.75mm Adjustable >0.75mm Adjustable
Support Format	HPGI,PLT,AI,DXF etc.
Controlling Software	Hangzhou Times
Fixture Type	Pneumatic
Compatible Software	Core Draw,Auto CAD,Photoshop
Driving System	Standard:Domestic Motor Optional:Japan Panasonic Servo Motor and Drive
Machine Power	≥7000W
Working Voltage	AC 220V(+/10%)50-60Hz
Operating Temperature	0-45ºC
Operating Humidity	5-95%

Packaging & Shipping

Our Service
Quality Control for die board laser cutting machine :
Our company has acquired the European CE Certificate, ISO9001: 2000 quality system certificate, you can cooperate with us safety.

After- Sale Service:

1> All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers will be get good products from us. and all of our machine with a 12 months quality guarantee period.
2> We will supply brochures for simple trouble-shootings of the machine, which will help you dealing with the common problems happened to the machine. We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.
3> We will offer plenty of online supports, just like detailed technical and installation instructions by email, video, telephone and fax.
4> Our engineer can make a door-to-door instruction training service at your local site.
