Za18j 20m Diesel Boom Lifts for Sale

Product Description

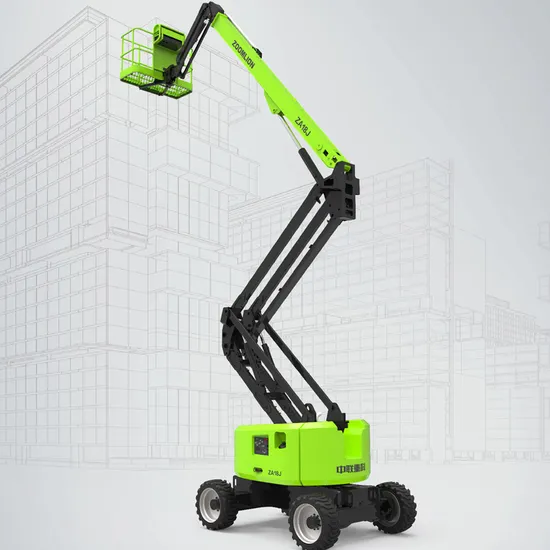

ZA18J 20M Diesel Boom lifts for sale
Zoomlion articulating boom lifts offer high capacity, great outreach and easy maintenance. The larger work envelope provides you with access to those hard-to-reach places. Electric articulating boom lifts are environmentally friendly with zero emissions, suitable for sensitive work environments.
ZA14JE is an electric articulating boom lift. It adopts a center layout and has a great structural rigidity. Excellent energy management system gives longer running time and improves battery life. The accurate and efficient AC drive system provides strong power and smooth control. Advanced dual control system (valve control + pump control) offers an energy-saving and efficient operation. With low noise, zero emissions and easy maintenance, this boom lift is ideal for indoor applications.

Electric Articulating Boom Lifts
Comply with CE/ANSI/GB Standard
Model	ZA18JE
Size
Work Height	21.45m
Platform Height	19m
Horizontal Outreach	7.50m
Up and Over Height	7.74m
A - Stowed Length	6.6m
B - Stowed Width	1.75m
C - Stowed Height	2m
D - Platform Length	1.52m
E - Platform Width	0.76m
F - Wheelbase	2.05m
G - Ground Clearance	200mm
Performance
Platform Capacity	230kg
Drive Speed	6.1km/h
Gradeability	30%(17°)
Axles Oscillation
Turning Radius (Inside)	0.79m
Turning Radius (Outside)	3.15m
Swing	360° continuous
Platform Rotation	±90°
H-Tail Swing	0m
Max. Working Slope	2/4°
Max. Wind Speed	12.5m/s
Power
Battery	8×6V/420Ah
Charger	48V/60A
Drive Motor	AC 32V/3.3kw
Lift Motor	DC 48V/5kw
Auxiliary Power	Manual Pump
Hydraulic Tank Capacity	30L
Tire
Type	17.5×6.75 Foam-filled Tires
Weight
Gross	6800kg
Highlights
ZA14JE
Center layout, great structural rigidity, and small boom deflection
Advanced dual control system (valve control + pump control) offers a energy-saving and smooth control
Accurate and efficient traveling AC drive system provides strong power and stable control
Features
Standard Features
Proportional control
All motion alarm
Flashing amber beacon
Self-closing entry gate
Emergency descent system
Emergency stop button
Auto-leveling system
On-board diagnostic system
Over tilt protection system
Load sensing system
4.3' LED display
Horn
Accessories & Options
AC power to platform
Airline to platform
Non-marking tire

---
