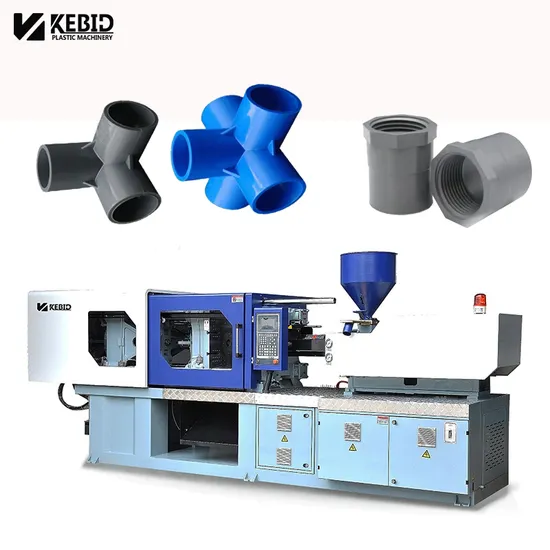

Kebida High Quality Kbd1680 Making PP PE PS Small Injection Molding Machine

Product Description

Installation Instructions
High quality multi-specification cable tie making machine injection molding machine
Energy saving Servo Plastic Injection Moulding Machine Price
Injection molding machines are also known as injection molding machines or injection machines. It is the main molding equipment for thermoplastic or thermosetting plastics using plastic molding dies to make plastic products of various shapes. Divided into vertical, horizontal, all-electric. The injection molding machine heats the plastic and applies a high pressure to the molten plastic to eject it to fill the mold cavity. Product Description

SPECIFICATION ITEM			KBD1680
Injection unit	Unit	A	B	C
SCREW DIA	mm	42	45	48
SHOT VOLUME (THEORETICAL)	cm3	346	397	452
INJECTION WEIGHT(PS)	g	318	365	415
INJECTION PRESSURE	Mpa	203	176	155
SCREW SPEED	rpm	0-180
CLAMPING UNIT
CLAMPING FORCE	KN	1680
TOGGLE STROKE	mm	420
SPACE BETWEEN TIE BARS	mm	460*460
MAX.MOLD HEIGHT	mm	460
Min.MOLD HEIGHT	mm	180
EJECTOR STROKE	mm	100
EJECTOR TONNAGE	KN	46
OTHERS
PUMP MOTER POWER	Kw	18
HEATING POWER	Kw	9.6
MACHINE DIMENSION(L*W*H)	m	4.8*1.5*1.3
MACHINE WEIGHT	T	5

Clamping unit
Strong rigidity of the template and Stable operation The optimized front joint connecting rod adopts integral casting, which has good rigidity and stable operation. The railings and guides are made of aluminum/copper sleeves or self-lubricating guide sleeves, which have a special wear resistance and low friction coefficient.it dramatically increases the life service of the draw bar. The template adopts a structure in which a T-shaped groove and a mounting screw coexist. Reasonable T-slot layout not only facilitates the installation of the mold, but also increases the strength of the template.
The Tie rods of each model are tested by the most professional inspection mechanism to ensure that the deformation of the tie rods is within a reasonable range when the machine is in operation.
Injection Unit
Accurate Injection and Stable operation
Injection, pressure holding pressure closed-loop control, back pressure precision control
The barrel screw has a long life and is easy to replace
Personalized design, including nozzle shied and central lubrication,it reduced operation intensity and that's convenient for daily maintenance while guaranteeing safety

Hydraulic Unit
Fast response and stable output
The hydraulic system adopts imported famous brand hydraulic components, and adopts the oil circuit combining the plug-in and the slide valve to effectively improve the response speed of the system.
High-efficient and energy-saving servo control system.
Responsive to fast and stable hydraulic control components.
Precision and stable hydraulic power unit.
Precision control unit
Responds quickly and stably
It adopts international famous brand controller, fully enclosed electrical control box, and reasonable electrical components.
TFT LCD color display.
A high-performance controller specially for injection molding machine .
High-precision displacement sensor as soon as possible.
Energy-saving drives and servo motors.
Online update program, data export, easy operation and multi-language support are available using USB. More than 10 languages.
KEBIDA SERVO INJECTION MOLDING MACHINE ENERGY SAVING-KEBIDA PLASTIC MACHINERY
The KBD servo-driven energy-saving precision injection molding machine is equipped with a high-performance servo motor power control system. The power output of the motor varies with the load drive, and there is no waste of excess energy. During the holding phase, the servo motor reduces the speed and the energy consumption is extremely low. During the cooling phase, the motor does not work and the power consumption is 0. The servo energy-saving system is equipped with a rotary encoder and a pressure sensor to feedback the flow and pressure at all times. This changes the speed and torque of the servo motor, so that the flow pressure is adjusted accordingly to ensure a higher repeatability of the product.
System power consumption comparison And Structural schematic
20%-80% Energy saving.
Quick Response
Sensitive Servo Motor ,The response time only 0.05 Second .
Quite&Low Noise.
The machine runs with low noise, and will be mach quieter in a low speed.
Oil temperature rise slowly .
Servo motor proportionally deliver hydraulic oil base on our needs ,it's can prevent unnecessary heat being generated. Even in some case does not require cooling.
KBD excellent characteristics inheritance.
Outstanding machine stability being safety and dependability, strong mechanical parts ,complete functional human-oriented operation system and long service life .
-Company Profile

Ningbo Kebida Machinery Equipment Co.,ltd ---Ningbo Hystan Machinery Manufacturing Co.,ltd. Ningbo Kebida(Hystan) Plastic Machinery Manufacturing Co.,ltd.located in beautiful coast of eastern sea, with 15 minutes to the international airport or high-speed rail station,very convenient to transportation, is a professional high-new technology enterprise,professionally manufacturing plastic injection molding machine. With dozens of years experience,have expected new factory of 10000 square. Having led through the ISO 9001:2000 international quality management system certification and CE product certification, our company has independently developed and made the KBD series plastic injection molding machine, having the characteristics and advantages with beautiful appearance,strong calming force, high precision,low noise ,energy saving and low consumption. KBD series energy-saving servo injection molding machine, PET preform special machine,high speed injection processing machine,high-speed machine, Bakelite machine,Resin special machine etc.dozens of series and kinds products has dozens of distribution networks and exclusive agents networks and after-sales services units in China.Products are far exported to Russia,South America,Europe and other Countries and Regions, having established sale network towards international market. The pursuit of First-Class Quality Products is our company's persistent objective, doing our best satisfy requirements of clients in domestic market and international markets, with constantly perfecting and pioneering sense of ownership,to create splendent and great future.

-Injection molding machine introduction


-FAQ

Q:Are you a factory or a trading company? A:We are a professional injection molding machine factory. Q:Do you only manufacture injection molding machines? A:Yes, we are a professional production factory, but we can also provide injection molds. Help customers build a complete production line. Q:Can you export? A:We can export. We have a professional team to get the job done. Q:How long is your delivery time? A:Usually 20-30 days. If you need to ship in time, you can discuss with us. Q:Can we discuss more details? A:Of course, please give us an inquiry and tell us the email address. We will contact you in the first time. Q:Can we contact with you others ways ? A:Yes , we have whatsapp,skype,facebook.email and so on. Facebook ID: Clark Kebida.

---
