Lathe Mill Drill Combo Hq800 Bench Multi-Purpose Lathe Machine

Product Description

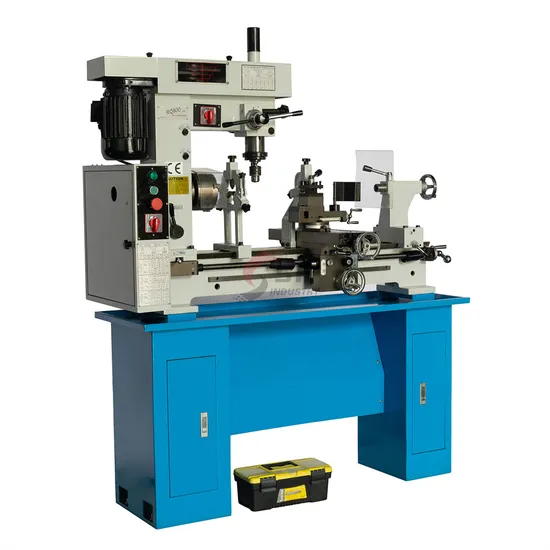

Lathe Mill Drill Combo HQ800 Bench Multi-Purpose Lathe Machine
Product Description
Features:
1)A kind of combination machines with turning, milling, drilling and threading.
2)Metric or imperial thread cutting
3)Suitable for processing metal, wood and other materials
4)Excellent advantage of various functions, small occupation and economization
5)Widely used in job-shops, car shops technical school, factories and family for machine parts repairing and making, education training, household utensils' making, etc.
Main technical specifications:

Specifications		HQ500	HQ800
Turning	Swing over bed	φ 420mm
	Distance between centers	500mm	800mm
	Max. longitudinal travel	440mm	740mm
	Max. cross travel	200mm
	Taper of spindle	M. T. 4
	Spindle hole	φ 28mm
	Step of spindle speed	7 steps
	Range of spindle speed	160-1360RPM
	Barrel travel	70mm
	Taper of center	M. T. 3
	Metric thread range	0.2-6mm
	Inch thread range	4-120T. P. I
	Longitudinal range of automatic feeding	0.05-0.35mm/0.002-0.014"
	Cross range of automatic feeding	0.05-0.35mm/0.002-0.014"
Drilling & Milling	Max. drilling capacity	φ 22mm
	Worktable size (L*W)	475× 160mm²
	Max. end mill	φ 28mm
	Max. face mill	φ 80mm
	Distance between spindle center and column	285mm
	Distance between spindle and worktable	306mm
	Headstock travel of up and down	110mm
	Spindle taper	M. T. 3
	Step of spindle speed	16
	Range of spindle speed	120-3000r. p. m
	Swivel degree of headstock	± 360°
Motor	Motor power	0.55Kw
Shipping data	Packing size	1130×580×1100mm(HQ800:1430×580×1100mm)
	N. weight/G. weight	245kg/280kg(HQ800:275kg/325kg)

Detailed Photos
Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
