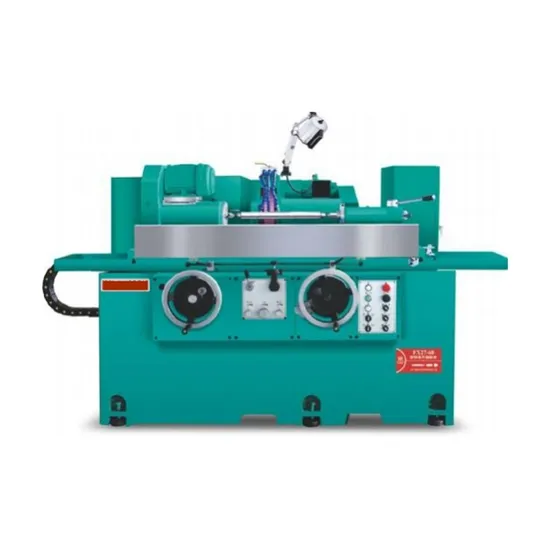

Semi-Auto Cylindrical Grinding Machines

Product Description

High precision Semi-auto Cylindrical grinding machines
Compact structure, simple operation,easy to maintain, easy to install
Add frequency converter line speed can be adjusted from 35m/s to 60m/s
In grinding tungsten steel, ceramics and other superhard parts of the efficiency has been greatly improved.
Minimum feed of digital display optical ruler 0.001mm

NO	Items	Parameters
Model: FX27-60
1	Maximum rotating diameter of table	270mm
2	The longest distance between the two tops	600mm
3	Maximum grinding diameter	Ø270mm
4	Grinding wheel speed	1650rpm
Model: FX32-60
1	Maximum rotating diameter of table	320mm
2	The longest distance between the two tops	1000mm
3	Maximum grinding diameter	Ø320mm
4	Grinding wheel speed	1570 rpm

A Straight in grinding
Small production, automatic feed with no spark timer, can get good grinding quality mass production, add automatic outside diameter measuring device (special accessories), can provide the best yield and grinding effect (CNC models).
B Transverse grinding
Automatic intermittent feed and hydraulically driven table enable the most efficient transverse grinding of the work object.
C End grinding
Remove the rotating cover of the working spindle head and
replace it with a three or four claw chuck. Change the position of the positioning tip to make the chuck rotate, and fix it at the position of 90° for end grinding.
D Shoulder grinding
When the outer diameter of the working object and its
shoulder are grinding to be completed at one time, the
working object is supported by the two top center and the grinding wheel is refitted on the right side of the grinding wheel head and rotated at an Angle to grind.
E Oblique grinding
The working object can be supported by the chuck or the two top center, and the table and the grinding wheel head can be rotated and adjusted easily.
Inner diameter grinding Inner diameter grinding accessories (special accessories) Grinding inner diameter, as
long as the inner diameter grinding spindle is pulled down and fixed in the grinding
position can be grinding.
Inner hole grinding device (optional)

Rotational speed	Inside diameter range	Maximum depth
20,000rpm	Φ25~45mm	100mm
30,000rpm	Φ 12~25mm	60mm

---
