C6246X1000/1500/2000 Convertional Lathe Machine Manual Lathe

Product Description

Product Introduction:
Feature:
Low voltage halogen work light
D1-6 camlock spindle for quick chuck removal
12 spindle speeds from 25-2000rpm
Lubrication pump on saddle oiling slides
Precision ground and hardened bed ways
Bed rail by super audio quenching and precision grinding
The spindle is supported with precision roller bearings
Head stock gears are made of high quality steel ground and hardened
Removable gap is provided for larger diameter work
Easy operating gear box has various feeds and thread cutting function
Electrical safety performance is good, high reliability
Parameters:

Specifications	C6241	C6246	C6251	C6256
Swing over bed	Φ410mm(16)	Φ460mm(18)	Φ510mm(20)	Φ560mm(22)
Swing over cross slide	Φ220mm(8-13/16)	Φ270mm(10-3/4)	Φ300mm(11-7/8)	Φ350mm(13-3/4)
Swing in gap	Φ640mm(25-1/8)	Φ690mm(27-1/8)	Φ738mm(29)	Φ788mm(31)
Distance between centers	1000mm/1500mm/2000mm/3000mm(40"/60"/80"/120")
Valid length of gap	165mm(6-1/2")		200mm(8")
Width of bed	300mm(11-13/16")		350mm(13-3/4")
Spindle nose	D1-6		D1-8
Spindle bore	Φ58mm(2-1/4")		Φ80mm(3-1/8")
Taper of spindle bore	MT6		MT7
Range of spindle speed	12 changes, 25-2000r/min		12changes25-1600r/min
Max travel of top slide	128mm(5")		130mm(5-1/8")
Max travel of cross slide	285mm(11-1/4")		326mm(12-15/16")
Max.section of tool	25×25mm(1×1)
Pitch thread of leadscrew	6mm or 4T.P.I.
Longitudinal feeds range	(42 kinds)0.031-1.7mm/rev(0.0011-0.0633/rev)		(35kinds)0.059-1.646mm/rev(0.0022-0.0612/rev)
Cross feeds range	(42 kinds) 0.014-0.784mm/rev(0.00033"-0.01837"/rev)		(35kinds)0.020-0.573mm(0.00048-0.01354)
Metric threads range	41 kinds, 0.1-14mm		47kinds,0.2-14mm
Inch threads range	60 kinds, 2-112T.P.I.		60kinds,2-112T.P.I
Diametrical pitches range	50 kinds, 4-112DP		50kinds,4-112D.P.
Module pitches range	34 kinds, 0.1-7MP		39kinds0.1-7M.P.
Dia. of tailstock sleeve	Φ60mm(2-5/16) 128mm(5)		Φ75mm(3")
Travel of tailstock sleeve	128mm(5")		180mm(7")
Taper of tailstock sleeve	MT4		MT5
Power of main motor	5.5kw(7.5HP) 3PH		7.5kw(10HP)3PH
Power of coolant pump	0.1kW(1/8HP) 3PH
Overall dimension(L×W×H)	2200/2750/3200×1080×1370mm		2900/3400×1120×1430mm
Packing size(L×W×H)	2250/2800/3300×1120×1620mm		2960/3460×1130×1820mm
Net weight(kg)	1670/1920/2070	1720/1970/2120	2335/2685	2370/2720
Gross weight(kg)	1980/2265/2450	2045/2330/2515	2700/3070	2740/3110

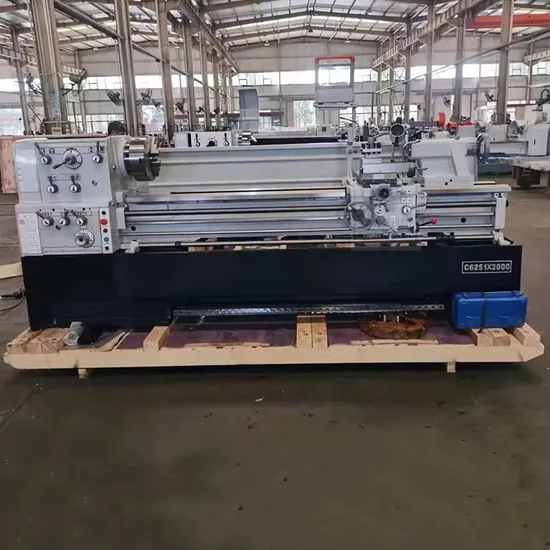

Machine details:
Standard Accessories:
Three-jaw chuck, four-jaw chuck, center rest, tool rest, faceplate, thread gauge, longitudinal stop, foot brake, work light, cooling system, standard accessory box

---
