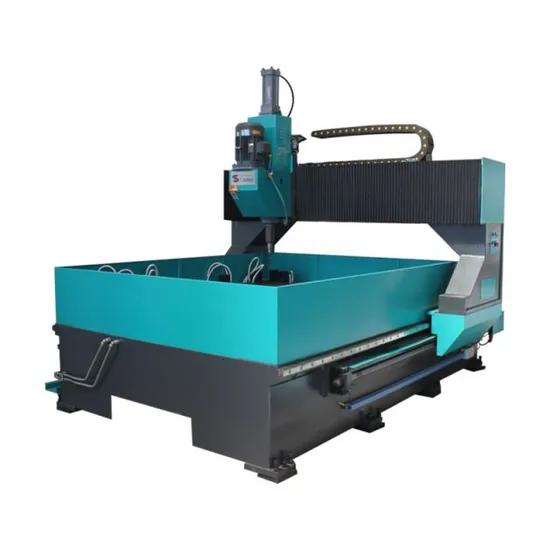

CNC Gantry High Speed Deep Hole Drilling Machine

Product Description

Product Description
--------------------------------------
Advantage and Highlight: 1.The machine body is whole welded by iron.
2.Adopting hydraulic in feeding power head ,which has high drilling efficiency.
3.It has 4 processing area ,12 hydraulic clamp.
4.Equips with automatic lubrication system.
5.We provide local service of seeing prototypes.
Features: CNC slid drilling head, can control the depth of hole, have the function of drilling blind hole, expanding hole, and chamfering. PLC control system can assure the drilling positional accuracy The machine have four processing area, 12 hydraulic clamp can clamping four groups of working pieces, can assemble and disassemble the work piece at the same time of drilling LCD display by PLC control system Programme based on windows, Auto CAD , and support lofting software TEKLA Auto chip-removal system, cooling liquid are circular The Key machanical, hydraulic, electronic parts adopts global brand name The whole machine are integrated designed, don't need to lay the foundation.
TECHINCAL PARAMETER

Model		PD2012	PD2016	PD3016
Max. Size of work Piece(mm)		2000*1200	2000*1600	3000*1600
Max. Thickness of Work Piece
Morse Taper of Main Spindle		Max.100mm, can overlap the thinner plates in process
Max.Drilling Diameter		Ø50mm
Drilling Spindle	Rotating Speed	120-560rpm(stepless speed adjustable)
	Motor Power	5.5kw
	No. of Clamps	12
Motor Power(KW)	servo motors(X)	7.5
	servo motors(Y)	1.3
	servo motors(Z)	1.3
	Pump Motor	0.85
	Motor for Swarf Conveyor	2.2
	Motor for cooliing Pump	0.4
Net Weight		5200	6200	7200

FAQ
1. Q: Are you a Manufacturer or a trading company? A:We are a professional manufacturer with more than 15 experience in manufacturing, assembling and selling in this field. We have our own factories as well as trading companies 2. Q: How long have your factory been in this field? And how many staff do you have? A: We have been in this field mode than 12 years since the year of 2008, total staff more than 100. 3. Q:Where are you and how can I visit you? A: Our factory located in Jinan City, Shandong Province China, contact us before your visit in order that we can arrange the good reception. 4. Q: Can you provide a customized solutions?
A: Yes, our engineers are pleased to listen your idea and customized design is available
5. Q: What about the warranty?
A: We provide 12 months warranty since the machine arrival. free charge of spare parts and regularly maintenance service.
6. Q:How about the delivery time ?
A: The delivery time is different on different products.We never receive any complain from our customers for the delivery time
7. Q: What about the package and shipment , worry about damage in shipping .
A:The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.
8. Q: What kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are generally accepted.
9. Q:Do u support on installation and training?
A: Yes, we provide engineers to your site for installation and training, if conditions not allowed, we provide team work by video conference for
installation gaudiness on line.
Our service
1.ONLINE FACTORY INSPECTION SERVICE. A:The factory inspection before your other, will be provided online by video meeting app. 2.LONG LIFE MAINTENANCE OF MACHINE. A: We keep provide the maintenance for the machine for all machine line. 3.INTERNATIONAL THIRD PARTY INSPECTION SUPPORTED. A:You can appoint the international third party ,such as SGB,BV, TUV, do inspection before the shipment.

---
