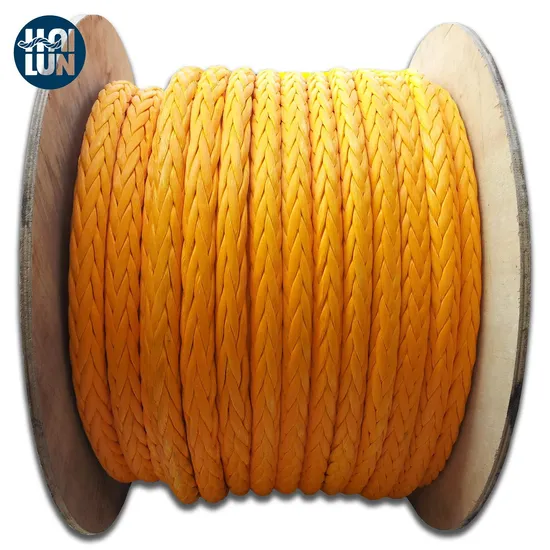

Yellow 12 Strand UHMWPE Rope for ATV, UTV, Mooring, Lifting, Offshore

Product Description

HMWPE Double Braid Rope
Details introduction
Material: 100% UHMWPE fiber Specific Gravity: 0.97 g/cm3 (Float )
Melting Point: 145°C
Elongation :3-3.7% (lower)
Not Bibulous, Ultra-High Strength, High Efficiency, Excellent Operability, Small Diameter, High Safety, Low Density, High Wear Resistance, Good UV and Chemical Resistance, Used in the Navy, Underwater Traction Rope, Mooring Rope and High Performance Of Ultra High Strength Professional Tug Cable, etc
HMWPE Double Braid Rope

mm Dia		Circ	Weight		Breaking Strength
mm	Inch	Inch	KGS/100M	LBS/100FT	Ton	kN
40	1-5/8	5	95	63.8	123.5	1210.30
44	1-3/4	5-1/2	116.8	78.5	145.9	1429.82
48	1-15/16	6	136.8	92.0	166.3	1629.74
52	2-1/8	6-1/2	164.1	110.3	196.9	1929.62
56	2-1/4	7	190.0	127.7	226.5	2219.70
60	2-3/8	7-1/2	216.8	145.7	256.1	2509.78
64	2-1/2	8	244.1	164.1	284.7	2790.06
72	2-7/8	9	314.1	211.2	358.2	3510.36
80	3-1/4	10	380.9	256.0	425.5	4169.90
88	3-1/2	11	458.2	307.9	502.0	4919.60
96	3-3/4	12	539.1	362.2	580.6	5689.88
104	4-1/8	13	651.8	438.0	690.8	6769.84

Company Introduction
1960S
The company was founded, and the products were mainly hand-woven rope.
1980S
The purchase of a rope machine, began in the age of mechanization.
2000S
The company has passed ISO9001 system certification, CCS,LR and other classification society's factory approval and product inspection.
2005S
The company buys 30000 m2 land, builds standardized workshop and office building.
2010S
The company has participated in the drafting of several national standards, such as ultra-high molecular polyethylene, polyester and acrylic, etc.
2012S
Cooperation and development agreement with the east China sea fisheries research institute of China fishery research institute.
2015
2017
The annual output of the company is 6000 tons and the annual output value is 8000W, and the annual output is increasing
