| US$4,600.00-7,900.00 | 1 Piece (MOQ) |
| CM A series | |||
| Parameter/Model | CM -15A | CM-20A | CM-25A |
| Output(kg/h) | 100-200 | 500-700 | 1000-1200 |
| Power (kw) | 3 | 11 | 22 |
| Revolving Speed of ring die (r/min) | 420 | 306 | 306 |
| Inside diameter of ring die(mm) | 150 | 200 | 250 |
| Pellet diameter(mm) | Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8 | ||
| Dimension(m) | 0.75*0.45*0.8 | 1.1*1.15*1.25 | 1.1*1.15.1.25 |
| Weight(kg) | 175 | 500 | 625 |
| CM B Series | |||
| Parameter/Model | CM-20B | CM-25B | CM-30B |
| Output(kg/h) | 500-700 | 1000-1500 | 1500-2000 |
| Power (kw) | 11 | 22 | 30 |
| Feeding motor(kw) | 0.75 | 0.75 | 0.75 |
| Revolving Speed of ring die (r/min) | 306 | 306 | 330 |
| Inside diameter of ring die(mm) | 200 | 250 | 304 |
| Pellet diameter(mm) | Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8 | ||
| Dimension(m) | 1.1*1.5*1.52 | 1.1*1.15*1.25 | 1.35*1.3*1.6 |

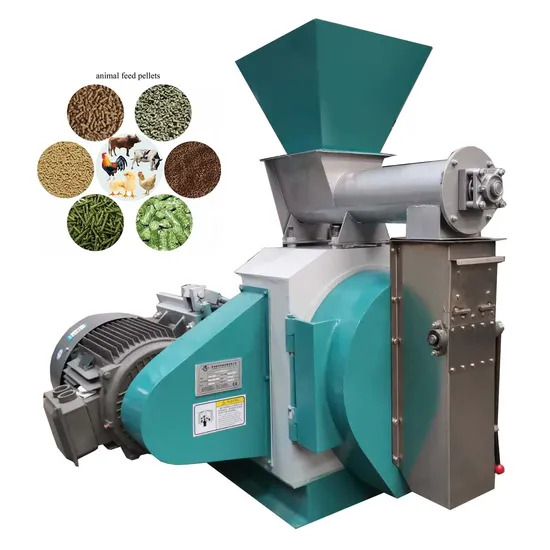

| Item | Feed Pellet Production Line |
| Suitable Raw Material | corn, maize, grass, grains, molasses, wheat, beans etc. |
| Feed application | poultry, livestock and aqua animals like: cattle, pig, sheep, shrimp, fish, pet etc. |
| Technical Parameters | - Capacity: 0.5t/h-2t/h - Dimensions: Designed according to specific requirements. |
| Features | - Highly efficient one step gear transmission drive ensures maximum utilization ratio of energy. - Full stainless steel feeder; Variable-pitch anti-arch structure; Imported frequency converter control. - Stainless steel conditioner extends the conditioning and cooking time. Axial steam spraying port, improving feed cooking efficiency. - High precision driving main gear and pinion shaft adopt the carbonizing quenching and hard tooth surface grinding technology, resulting in smooth driving, low noise and long service life. |
