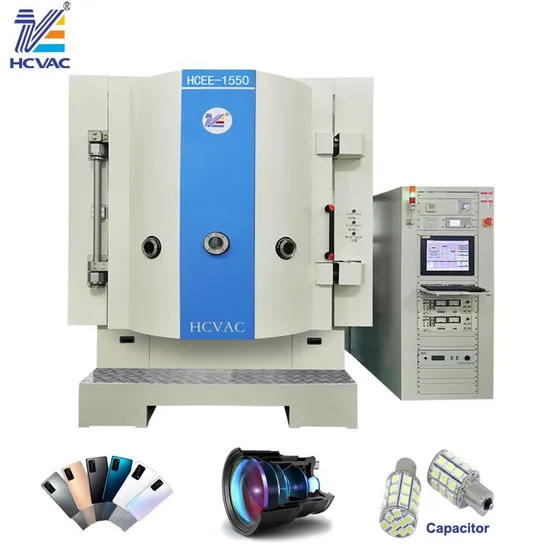

Hcvac Optical Coating Surface Treatment Electron Beam Vacuum Coater Machine PVD Sputter System (customized)

Product Description

Optical coating surface treatment Electron beam vacuum coater pvd sputter system can coat multi-layers,transparent color,anti-finger print film,anti-scatch film
Deposit material including: TiO2,Ti3O5,H4,ZrO2,ZNS,Al2O3,Mgf2,SIO2,Au,Ag,Cu,Ti,Sn
Precision optics PVD vacuum coating machine is a flexible platform for fast, precise and fully automated thin film coatings. It specializes in high quality optical coatings featuring very low absorption and scattering. Unsurpassed optical performance is ensured by the extremely dense, smooth, stoichiometric, and amorphous layers. Ultimate precision in layer growth control is facilitated by an optical monitoring system for in-situ on-substrate measurements.
- Optical Coater can coat multi-layers on viewing window or spectrum element that applied to optical instruments optical lens.
-- Optical coater can be put 3 arc-shaped pieces of sectors or single arc-shaped part.
-- It can coat multi-layers on viewing window or spectrum element that applied to optical instruments optical lens. Touching screen + PLC make up the fully automatic controlling system that can realize parameter input, process monitoring and data saving, technological process setting and auto-operating. It helps improve the quality of film layers.
To control and shape the light, from UV over visual to infrared, to achieve every possible specification, challenging spectral shapes of the filter coatings, to make it possible, with our components, coatings systems, process technology, our engineers, the long years experience...this is the art dedicated to our customers...
-

Features
* Reactive Magnetron Sputtering with RF I-beam Assistant for AR, Evaporation for AF.
*One-stop Mode for Multi-coating, 'AR with AF Top Coating' and Hardness of 9H higher Layers process.
* Wide Selection of Materials, complete Film Tpes.
* Excellent Film Accuracy, Hardness, Abrasion-resistance and Adhesion.
* Natural Non Residual Stress Characteristics.
* Superior Processing Stability, Uniformity and Repeatability.
* Friendly Interface and 'Fool' Level of Maneuverability.
* Super High Yield and Low Energy Consumption.

Mode	HCEB-900	HCEB-1100	HCEB-1350	HCEB-1550	HCEB-1800	HCEB-2350	HCEB-2700
Dimension	φ900*H1300	φ1100*H1520	φ1350*H1610	φ1550*H1810	φ1800*H1850	φ2350*H1510	φ27000*H1850
Dome	φ750	φ950	φ1200	φ1400	φ1600	φ2250	φ2640
Rotation speed	10-30 RPM ( Variable )
Color Range	Unlimited
Thickness Monitor	Quartz crystal or Optical monitor
Coating material	TiO2, Ti3O5, H4, ZrO2,ZnS, AI2O3, MgF2, SiO2, Au, Ag, Cu, AI, Ti, In,Sn, etc.
Ion source	RF/ Kaufman-type / End-hall-type ion beam source
Evaporation	E-beam source (Dual source co steaming optional), Multi-point crucible hearth or annular hearth, Thermal source
Wavelength	300nm - 1560nm					380nm-780nm
Application	Coat high-precision optical multilayer film on glass / PC / PMMA. UV/IR Cut-off filter, Decorative film, Band Pass Filter, RGB Filter, Photocatalyst, HR film, etc.

Application
Application: AR,AF,Hard AR coating,enhanced reflection coating,band pass filter,rgb filter,HR coating,Photocatalyst,Dielectric Mirror,IR cut off filter.
-- It is suitable for coating antireflection coating, optical filter, multicolor, red, yellow, green and blue on optics lens, electronics, acrylic, glass, lamps, mobile viewing window, glasses, lighting.

Company Profile
Workshop:

Certifications

Clients
Our Advantages
Why Choose HCVAC system? Over 3000 plants installed worldwide Quick cycle times High production capability with low energy consumption More up time due to ease of loading/unloading and low maintenance High productivity with only a single operator Steel process chambers, built to last Eco-friendly Space saving design PVD option available on all plants 1 year component warranty and 25 years minimum guaranteed working life Complete global network of consulting, engineering and renowned after sales service
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the full set special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
ISO 9001 standard to ensure the quality can meet the customer's requirements.

Easy to implement: To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: stripping (depending on the part's history); pre-treatment; quality control; cleaning & drying; fixturing & visual inspection; PVD coating; quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
