| US$9,999.00-19,999.00 | 1 Set (MOQ) |

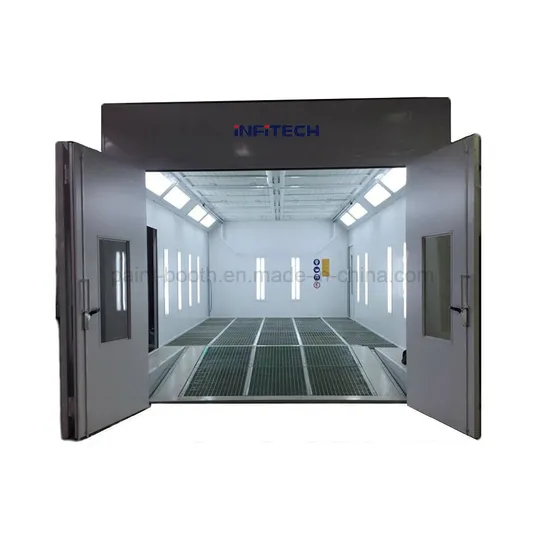

| INFITECH CE certified down draught spray booth/spraying cabin for sports utility vehicles(SUVs) | |
| Design standard | BS EN 13355: 2004 + A1: 2009 BS EN 60204: 2006 + A1: 2009 |
| Airflow | Full downdraft |
| Internal dimensions | 8000 x 4000 x 2800mm (L X W X H) |
| External dimensions | 8110 x 5760 x 3810mm (L X W X H) |
| Plenum height | 600mm |
| Basement | Full grids, 350mm high |
| Drive-in ramp | 1 set, pneumatic |
| Entrance door | 1 set, 3200 X 3050mm (W X H) |
| Personnel door | 1 set, 800 X 2000mm (W X H) |
| Ceiling lighting | 10 sets, each 4 X 18W, 720W total, LED lamp |
| Sidewall lighting | 10 sets, each 2 X 18W, 360W total, LED lamp |
| Brightness | >1,000LUX |
| Purification | Pre-filter, ceiling filter, floor filter, extract filter |
| Air intake | Direct-type turbine fan, 11KW, SIEMENS |
| Air exhaust | Direct-type turbine fan, 11KW, SIEMENS |
| Air volume | 35,000m3/h |
| Empty loaded air speed | +/-0.30m/s |
| Heating system | 315kw heat exchanger, RIELLO gas burner RS5D |
| Controls | CE standard control box |
| Rated power | 26KW |
| Airflow • Downdraft for spray and cure • Controlled airflow ceiling | Construction • White pre-coated galvanized steel • Dual-skin insulated panels filled with rock wool, 50mm thick • 600mm high plenum • Full grids (900kg/wheel), 350mm high basement |
| Doors • 3-wing entry door with tempered glass window • Personnel door with observation window | Heat • Intake and exhaust motors, 11kw, SIEMENS motor • RIELLO gas burner RS5D, 315kw heat exchanger |
| Filtration • Pre-filter: EU3 grade pre-filter plate filter • Ceiling filter: F5 grade filter cotton, Model SP-600G • Floor filter: G2 grade fiberglass paint arrestor filters • Extract filter: Simple activated carbon filters | Controls • PLC controller, pressure gauge Functions: Painting, flash, baking, cooling, lighting, emergency stop switch, failure indication, over-temperature alarm indication, motor over-load and over-current protection |
