Wholesale Construction Machinery Excavator Zl30 Construction Machinery Transmission Planetary Alloy Steel Transmission Gearbox

Product Description

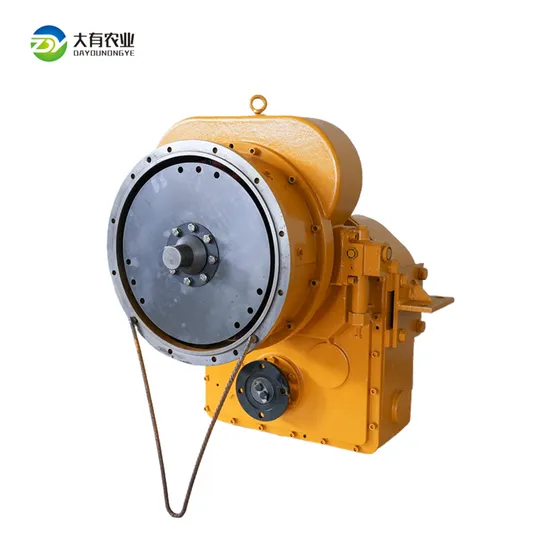

Wholesale construction machinery excavator Zl30 construction machinery transmission planetary alloy steel transmission gearbox
Product Description
Features of construction
1, full electronic control hydraulic shift, shift smooth impact is small, without stopping the shift control is simple, the first 4 after 4
2. Match YJ315 torque converter to deliver more torque
3. The front end of the gearbox is equipped with a brake for parking braking
Detailed Photos Product Parameters

Engine input power	65-90KW
Engine input speed	1800-2400 r/min
Transmission ratio of each gear	FI=6.68	R I=6.85
	FII=3.63	RII=3.72
	FIII=1.67	RIII=1.71
	FIV=0.91	RIV=0.93
Working fluid	6#18# hydraulic transmission oil
Control valve oil pressure	1.7-1.8 MPa
Lubricate cooling oil pressure	0.15-0.3 MPa
Operating temperature	80-110ºC

Gearbox dimensions
Company Profile
Qingzhou Yunqi Machinery Sales Co., Ltd. is located in the Economic development zone of Qingzhou City, Shandong Province, with superior geographical location and convenient transportation. It has two branches, Qingzhou Dayou Agricultural Equipment Technology Co., Ltd. And Qingzhou Shunye Machinery Technology Co., Ltd., mainly engaged in sugarcane harvester and construction machinery gearbox.
Dayou Agricultural Equipment Technology Co., Ltd. Has a complete set of large-scale factory 10000 square meters, office area 1500 square meters. At present, the company has seven departments including manufacturing department, technology department, research and development center, purchasing department, Marketing Department (including international market management department), after-sales service department, and comprehensive department, and has the independent management ability and channels of machinery import and export foreign trade. The company has two full-time technical consultants, and has maintained long-term cooperation with several major national research institutes and professional colleges. The company has strong technical force, 3 senior engineers, 12 R & D, design and process engineers, and rich work experience. Excellent sales and after-sales team is the main guarantee for customer service. Qingzhou Dayou is fully capable of providing comprehensive solutions for our customers to relieve all the worries of customers.
Our Advantages
Certifications
Packaging & Shipping

---
