Paper Machine Spare Parts Stainless Steel Cylinder Mould Former

Product Description

Product Description

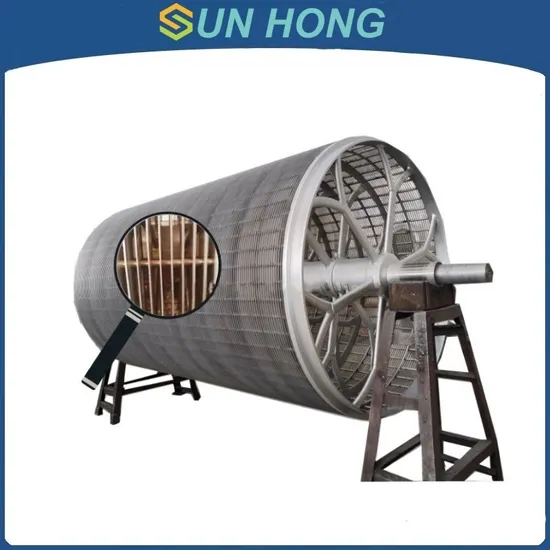

Cylinder Mould: It can be said to be the heart of a machine used for manufacturing paper and board and is responsible for controlling the stick flow and picking up onto the felt and also for formation of a homogeneous single and multi layer and profile of the substance fully across the web.The paper machine cylinder mould is light in weight, corrosion-resistant and reduces energy consumption. Reduce equipment maintenance cycle.
Cylinder Mould Former:A complete set of mould former include: cylinder mould, couch roll , guide roll, felt foil box ,movable spray pipe ,frame and base plate .Foundation part including sole plate, anchor bolt ,nut etc. foundation drawing content : reserve hole position ,size, elevation, the static and dynamic load of each driving point. it is only for technical reference. the sole plate material is cast iron HT 200 , through 2 times again eliminate stress processing.
Main Features
The principle of the cylinder mould is to provide the forming surface through which water drains to leave the fibers matted in a sheet. The cylinder is designed to allow drainage uniformly across its width with no turbulence to disturb the fibers during formation.Sheet formation cannot be improved later in the papermaking process; it is produced once and for all on the cylinder mould.
1. Square taper multi-barreled pressure pulp distribution.
2. Diffusion separation chamber for rectification and pulp evenness.
3. Adjustable mechanism for pulp serving on the wire to control the quality of the wet paper page.
4. Paper production speed increase by 25%-40%.
5. Increase the evenness, flatness and quantification of the paper.
6. Increase the variety and weight range of the paper.
7. Simplified structure, easy maintenance.
8. Low energy consumption. The Wire Cloth Cover
Quality stainless steel wire cloth is woven to our specification using a variety of weaves and wire diameters. Designed to perform in diverse chemical and mechanical environments, our cloth meets the strictest requirements for durability, seam strength, drainage and minimized wire marking.
Our highly skilled seamers choose from a wide selection of brazing alloys using either silver or gold to produce the best straight or helical seam for your application. Once properly tensioned, covers are carefully secured to the cylinder to ensure durability under the most severe conditions. Basic Technology Data
We design cylinder mould according to customer needs,tell us your requirements so that recommend proper machine and make detailed technical proposal.The following parameters are for reference only.

Paper weight	200-250g/m2
Working face range	1000-5000mm
Design speed	200m/min
Working speed	100-250m/min
Gauge	4300mm
Productivity	50-100T/D
Spoke	Stainless steel

Packaging & Shipping
Packing Details : Spray antirust oil on machine surface and cover PE film, thenpacked in wooden box in the container(including all parts)
About us
Our company has perfect service system. We have experienced engineer teams, who can supply perfect service during the whole deal, including technology consultation, civil work design, project evaluation; Installation and testing the whole production line; Training engineers and workers; Meanwhile, we also supply spare parts for long time and manufacture machines in accordance with customers' special requirements.

---
