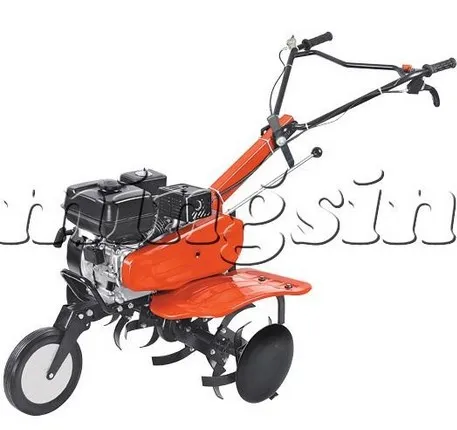

Gt-7 Mini Farm Tiller, Diesel Tiller, Power Tiller

Product Description

Product Description
FEATURES:
1. Compact structure
2. Lightweight
3. Reliable, easy and flexible power operation
4. Stable and reliable, easy maintenance
Main Applications of Power tiller
I. Revolving FarmingMount the revolving farming device onto the left and right of the transmission shaft of the running part of the power tiller, then use two M8*55 screw bolts for axial positioning purpose, finally the machine can start revolving farming.II. Ditching &RidgingUnlade the velocity adjustment screw before the ditcher is mounted. Subject to the adjustment of the width and height for ditcher, then the ditching can be conducted.III. Short Distance TransportAfter mounting the forearm of the wagon box on the trailer and wheels one the transmission shaft of the running part, the machine can do a transportation job. The rated load is 250kg, under normal rotated speed of the diesel engine, speed of the fast shift is about 10km/h and that of the slow shift is about 5km/h.IV. Multi-Functional WorkingDismount protection cover of the gear-box, unscrew the bolts away from the rear part of the main shaft, take the cover for keys out of the shaft, fasten the self-contained belt pulley or coupling onto the gear-box's main shaft's rear part with screws. Type A of common V belt is adopted for belt pulley's cross section. Rated rpm of the belt pulley is 3000 rpm. When the corresponding devices are equipped pumping water, spraying, threshing, reaping, generating electricity, etc are realized. (Above additional implements are in exploitation process. Please contact with the local distributor if you need above implements. ) Product Parameters
DETAILED SPECIFICATIONS:

Model Unit GT-7 Overall dimensions mm 1300×500×1050 Packing weight kg 78 Transmission B elts Speed km/h 1.84-3.88 for going ahead and 1.6 for drawing back Tilling depth mm 200 Tilling width mm 850 Engine Model 168FA Max. output kw 3.7 Fuel Consumption g/kw/h 395 Displacement cc 196 Torque N 13 Pack ing Size mm 665x45 0 x635
