Ck61125 CNC Lathe Machine Heavy Duty Torno CNC Horizontal Lathe Machine Flat Bed CNC Lathe

Product Description

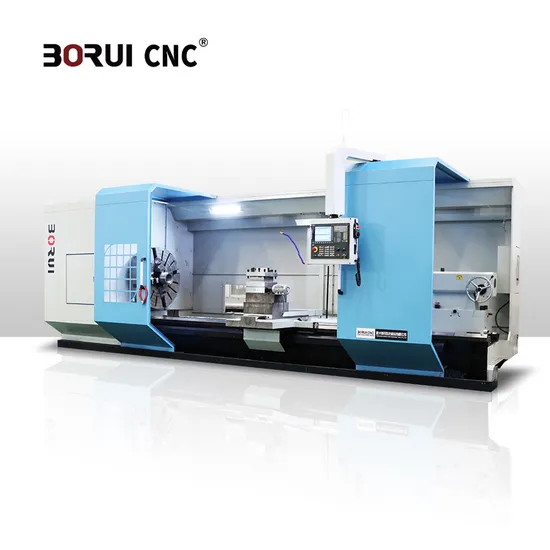

CK61125 Heavy Duty Torno Cnc Horizontal Lathe Machine Flat Bed CNC Lathe
Product Description

The machine is suitable to process the middle and large size work piece in steel , cast iron ,non-ferrous metal material . With the feature of big power and high rigidity , this machine is applied to heavy-cut the inner circle ,ex-circle , end surface and thread in both metric and English system , and could drill and bore the holes .

Product Parameters

SPECIFICATION	UNIT	CK61125
Swing over bed	mm	1250
Swing over cross slide	mm	850
Distance between centers	mm	1500-10000
Guideway width	mm	755
Max. load capacity	T	6
Spindle bore	mm	130
Spindle bore taper	-	Metric 140/MT6
Spindle nose type	-	A2-15
Spindle speed steps	-	VF. 4 steps
Spindle speed range	rpm	4-300
Chuck	mm	Φ1000 4-jaw manual
Turret/tool post	-	NC turret 4 position
Tool shank size	mm	40 x 40
X axis travel	mm	620
Z axis travel	mm	1500-10000
X axis rapid traverse	mm/min	4000
Z axis rapid traverse	mm/min	6000
Tailstock quill diameter	mm	Φ160/Φ260
Tailstock quill taper	-	MT6/Metric 80
Tailstock quill travel	mm	300
Main spindle motor	kW	22
Coolant pump motor	kW	0.25
Width x Height	mm	2250 x 2300
Length	mm	5000-14000
Net weight	T	11-20

Details Display



Packaging & Shipping
Packing shippingFor machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
FAQ
1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?
A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) We want to know:1.What's your Industrial Voltage? 2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model! 3.If need CIF Price, please kindly tell us the port of destination.

---
