| US$300.00-1,000.00 | 1 Piece (MOQ) |

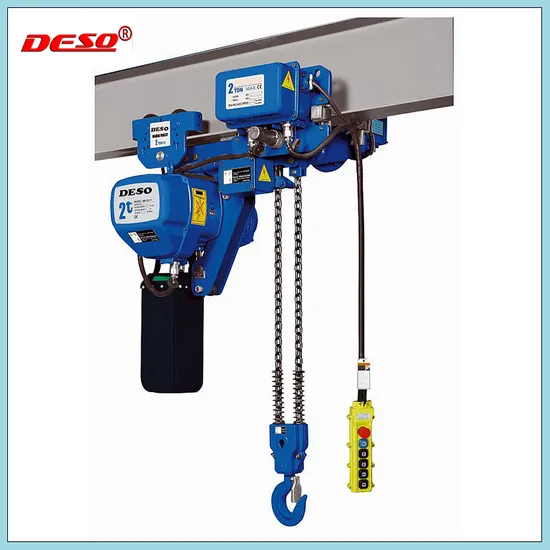

| Product Name | Electric Chain Hoist | |
| Material | Gear | Alloy steel |
| Electric motor partial outer cover | High strength aluminum shell | |
| Hook | Alloy steel | |
| Chain | Aluminum alloy steel | |
| Feature | *High efficiency, small pulling effort and easy maintenance *Overload limiter protects hoist mechanism is available *Compact and high efficient motor with heat protection device *Both single phase and three phase are available *Double speed type is also available | |
| Capacity | 0.3t~2t | |
| Delivery Time | 20~45days,based on Qty | |
| Packing List | Carton / Wooden case / Wooden case + Pallets as required | |
| Protection Class | Hoist :IP54,or IP 55; push button:IP65 | |
| Application | Widely used in the dock, logistics operations, factory warehouses, construction and modern production lines | |
| Model | Capacity (t) | Lifting speed (m/min) | Rotation speed (r/min) | Working power (V) | Chain fall | Dimension (mm) | |||||
| L | L1 | A | B | C | D | ||||||
| DMS0.25-01 | 0.25 | 8/2 | 2880/720 | 220-460 | 1/1 | 425 | 156 | 370 | 420 | 275 | 148 |
| DMS0.5-01 | 0.5 | 8/2 | 2880/720 | 220-460 | 1/1 | 467 | 197 | 400 | 450 | 315 | 153 |
| DMS0.5-02 | 0.5 | 4/1 | 2880/720 | 220-460 | 2/1 | 425 | 156 | 420 | 420 | 275 | 148 |
| DMS01-02 | 1 | 4/1 | 2880/720 | 220-460 | 2/1 | 467 | 197 | 450 | 450 | 315 | 153 |
