Welcome to visit

CE/EPA/Euro 5 Micro Electric Mini Hydraulic Bagger 1.5t 2t 1t 0.8 1.2 1.7 2 Ton 1ton Small Digger Sunward Crawler Excavator

US$2,600.00-2,700.00 1 Piece (MOQ)

Basic Info.

Model NO.
CP15
Type
Crawler Excavator
Usage
GM Excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Overall Weight
1500kg
Rated Bucket Capacity
0.04m3
Engine
Changchai/Yanma/Kubot
Rated Power
15kw
Attachments
Different Attachments Are Available
Steering System
Articulated Hydraulic Steering
Color
Yellow, Red, White, Blue, Orange
Ground Clearance
370mm
Transport Package
Nude Packing
Specification
2650 x 1100 x 2200mm
Trademark
CP
Origin
Shandong, China
Production Capacity
2000/Year

Product Description

Preduct description:
China factory cheap price new mini 1.5 ton crawler excavator machine for sale

As a professional manufacturer and trading enterprise, specialized in the export of Excavators, wheel loaders, tractors,forklifts and all kinds of attachments, around 12 years of experiences, professional and constantly innovation, professional producing line, every serious careful assembly workers,and Specialized testing,we ensure every machine that you received has very reliable quality and stability.
This excavator is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain.
Pictures as follow:

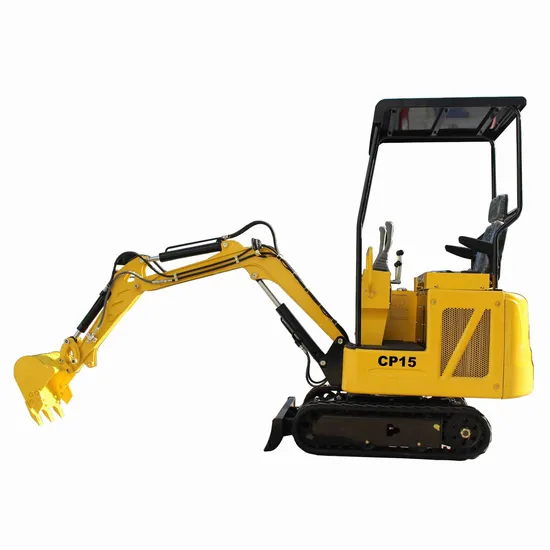

CP15 Excavator including:
- Operating Weight :1500KG
- Bucket capacity:0.04cbm
- Changchai 15kw engine
- Hydraulic steering
- New adjustable seat
- With a standard bucket
- Easy-damaged spare parts
CP15 Excavator Specs:
Model CP15
Operating Weight 1450kg
Digging bucket capacity 0.04cbm
Digging bucket width 500mm, can add narrow bucket is 200mm
Engine CHANGCHAI/YANMA/KUBOT
Rated power 15kw/
Displacement 7.8ml/r
Bore stroke 2 cylinder, fan cool
Hydraulic oil tank 21L
Diesel oil tank 9L
Arm digging force 7.0Kn
Bucket digging force 12Kn
Electric pressure 12V
Electrick power 5W
MAIN DEMENSIONS
Overall dimension( LxWxH) 2650 x 1100 x 2200mm
Wheelbase 950 mm
Total length of track on land 1300mm
Platform ground clearance 370 mm
Platform back turning radius 820 mm
Chassis width 1010 mm
Track width 180 mm
Chassis ground clearance 150 mm
Track height 310 mm
OPERATING RANGE
Max. Digging depth 1650 mm
Max. Vertical digging depth 1350 mm
Max. Digging height 2600 mm
Max. Dumping height 1850 mm
Max. Digging radius on ground 2850 mm
Min. Rotation radius 1430 mm
Max. Upgrade height of bulldozer blade 345 mm
Max. Digging depth of bulldozer blade 255 mm

Pictures:
Packaging & Delivery:
- 6 set in a 20GP, need to remove cabin,
-12 sets in a 40HQ,just drive them into the container
- Triangle wood and 10mm wire fixed.
