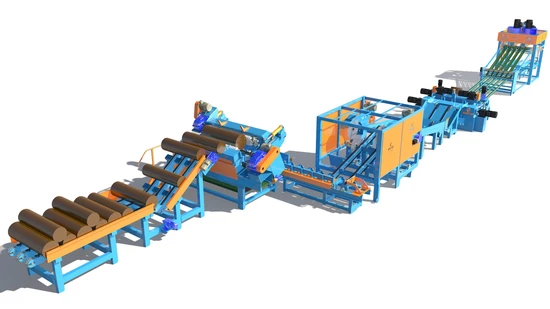

Mstar Automated 4FT Veneer Peeling Machinery with Advanced Technology

Product Description

Company Profile
MSTAR MACHINERY CO., LTD, nestled in the vibrant Linyi city of Shandong, China, stands as a beacon of modern, professional excellence in the realm of woodworking machinery. Specializing in the research, development, production, and distribution of cutting-edge woodworking machines, we have set the industry standard with our innovative solutions. Our flagship products include the high-speed spindleless veneer peeling line, sanding machines, hot presses, saws, and debarkers. Among them, our high-speed automatic veneer peeling line has emerged as the industry benchmark, celebrated for its unparalleled efficiency, energy conservation, time-saving capabilities, and labor-saving benefits.
Through our commitment to providing superior products, impeccable service, and honest sales practices, MSTAR has garnered global acclaim. We earnestly invite you to join hands with us in a fruitful collaboration, as we look forward to achieving new heights together.

Product Parameters

4FT HIGH SPEED VENEER PEELING MACHINE

Parameter	Value	Notes
Length of the Roller(mm)	1500
Power of Double Roller(kw)	11kw X 2	AC Servo induction motor
Power of Single Roller(kw)	11kw X 2	AC Servo induction motor
Power of Screw Feed(kw)	11kw	AC Servo induction motor
Power of Rotary Clipper(kw)	2.2kw	AC Servo induction motor
Power of Rubber roller (kw)	2.2kw	AC Servo induction motor
Total Power(Kw)	59.4kw
Roller Reducer	Helical Gear Box X 4	R87
Screw Feed Reducer	Helical Gear Box X 1	R97
Clipper Reducer	Worm Gear Box X 1	RV90
Rubber Roller Reducer	Worm Gear Box X 1	RV90
Veneer output speed(m/min)	50-100 m/min Adjustable
Blade (mm)	1500*180*16
Screw Diameter(mm)	90mm
Max opening(mm)	500
Minimum Log core	24mm	normal roller:24mm
Thickness(mm)	0.8 - 4.0
Clipper width(mm)	>= 400 mm
Control Unit	Peeling Speed Adjust System Closed loop Servo control	PLC + Touch Screen MD810
Size(mm)	3500*2300*1550 Length()*Width()*Height()
Weight(kg)	7000

DESCRIPTION	UNIT	PARAMETER
LENGTH OF LOG	MM	≤1500mm
DIAMETER OF LOG	MM	Ø100-600
BLADE SIZE	MM	1500*180*16
ROLLER SIZE	MM	Ø165/200
HYDRAULIC POWER	KW	7.5
ROLLER POWER	KW	30
CHIP POWER	KW	15
GEARBOX		250*4
WEIGHT	KGS	5500
OVERALL SZIE	MM	4000*2200*2400
FUNCTION	PEEL BARK, CHIP FUNCTION

DESCRIPTION	UNIT	PARAMETER
VENEER WIDTH	MM	1300
VENEER LENGTH	MM	400-1300
LIFTING TYPE		HYDRAULIC LIFT
FORMAT VENEER CONVEY		CHIAN AUTO CONVEY
SPEED		ADJUSTABLE
VENEER THICKNESS	MM	1-4
POWER	KW	22
STACKING HEIGHT	MM	1200
WASTE VENEER CONVEY		HAVE
OVERALL SIZE	MM	12000*3300*2500
WEIGHT	KGS	4000KGS

Packaging & Shipping


TEAM & CULTURE

OUR VISION

"Together, we rise."
"United, we conquer."
"Collaboration unlocks potential."
"Teamwork makes the dream work."


MSTAR COMPANY, is the original and professional manufacturer for plywood production machinery, we can supply you full wood veneer peeling line for the whole plywood .
This spindlelss peeling is very popular in veneer and plywood industry in the world.
We are able to provide you all the best solutions during your plywood production!
WE LOOK FORWARD TO COOPERATE WITH YOU FOR LONG TERM BUSINESS ON MUTUAL BENEFITS!

---
