Qszq-1400 (H500) Automatic Stone Machinery Bridge Saw Marble Stone Cutting Machine

US$12,900.00 1 Piece (MOQ)

Basic Info.

Model NO.
QSZQ-1400 (H500)
Application
Mineral Industry, Stone Industry
Source Voltage
380V
Automation
Semi-automatic
Cutting Ability
High Speed
Control
Artificial
Trademark
FENGYUAN
Origin
China
HS Code
84641090
Production Capacity
1000PCS/Year

Product Description

Product Description

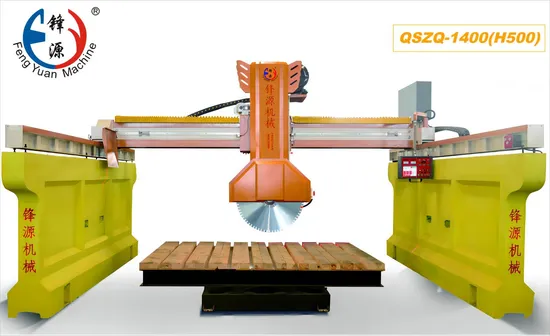

QSZQ-1400 (H500) Curb stone cutting machine
* This stone cutting machine adopts long-span bridge structure.
* The beam and the side beam are sealed by rail oil immersion, and the anti-wear lubricant forms a thin oil film between the rail and the slide block. At the same time, the side beam protective film is provided to reduce the material loss to the extreme.
* The imported inverter used in the cutting system can realize stepless speed regulation cutting.
* Equipped with 360-degree rotating table, flexible rotation, accurate positioning, good rigidity, so that the machine cutting smooth and high processing rate.
* This stone cutting machine is the ideal equipment for processing high value stone, tombstone crafts, and roadside stones.
Product Parameters
Type Unit QSZQ-1200 QSZQ-1400 QSZQ-1600
Crossbeam Height mm 500 500 500
Blade Diameter mm 600-1200 800-1400 800-1600
Movement Stroke mm 800 800 800
Working lengtt mm 2800 3200 3200
Working width mm 2000 2000 2000
Main motor power Kw 30 30 30
Water consumption m²/h 4 4 4
Overall dimensions mm 6000x4700x4200 6000x4700x4200 6000x4700x4200
Total Weight Kg 8000 8000 8000

Factory View
Workshop
