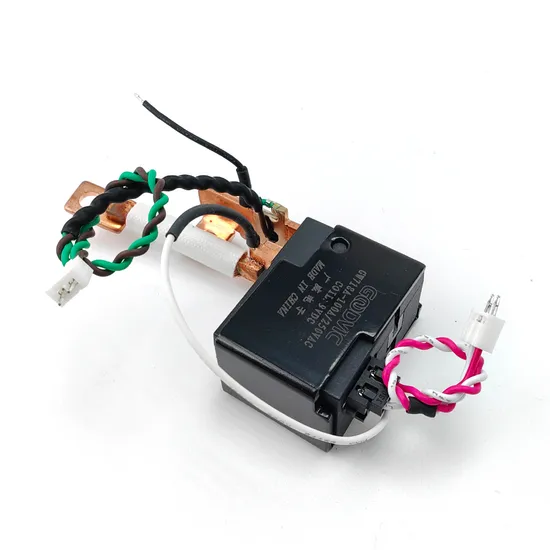

General Purpose Double Coil Magnetic Latching Relay

Product Description

Product Parameters
*Application notes:
1. Please reset the Relay when you usee It.Bocau6e the relay have two status close or off when producod,but tho otatus may be changed during the dellvery and Installatlon.
2. Please ensure the rated voltage for the relay disconnetod/ connected, But do not offer the disconnect/connect voltago for the coil at same time,also the time,also the time can't be longer than one minute.
3. GW-718A(Product Series)-100A(Max Switching Current). ABDE are three-phase relays, H is a two-phase relay, and CK is a three-phase relay. The coil and maximum current can be adjusted, and attachments can be soldered according to customer requirements. If you have any questions, please feel free to contact us.

Contact Specification
Dimensions(mm)	38.5×30×18.5
Contact Form	1A/1B
Contact Material	Silver Alloy
Max Switching Current(Anti-load)	100A
Max Switching Voltage	28VDC/250VAC
Max Switching Power	2800W/25000VA
Wight	45g

Coil Specification (20ºC)
Rated Coil Voltage		9VDC	12VDC	24VDC	48VDC
Coil Resistance	Single Coil(±10%Ω)	40	72	288	1152
	Double Coil±10%Ω)	20	36	144	576
Power Consumption		Single Coil 2W; Double Coil 4W
Pulse duration		≥50ms(Rated Coil Voltage)
Pick-up Voltage		≤75%(Rated Coil Voltage)
Drop-out Voltage		≤75%(Rated Coil Voltage)
Max. Applicable Voltage		≤120%(Rated Coil Voltage)
Pick-up Time (At Rated Voltage)		≤30ms
Drop-out Time (At Rated Voltage)		≤30ms
Bounce Time		≤2ms

Characteristics
Ambient Temp		-40~+70ºC
ambient humidity		≤75%RH
Anti-vibration		10~55Hz,0.5mm (Double Amplitude)
Anti-shock		98m/s2,11ms
R.H.		45%~85%
Contact Resistance		≤1.0mΩ (1A/6VDC)
Insulation Resistance		1000MΩ (500VDC)
Dielectric Strength	Between Contacts	2000VAC 50/60Hz (1 Minute)
	Between Contact & Coil	4000 VAC 50/60Hz (1 Minute)
Life	Electrical Life	≥1*104OPS
	Mechanical Life	≥1*105OPS
