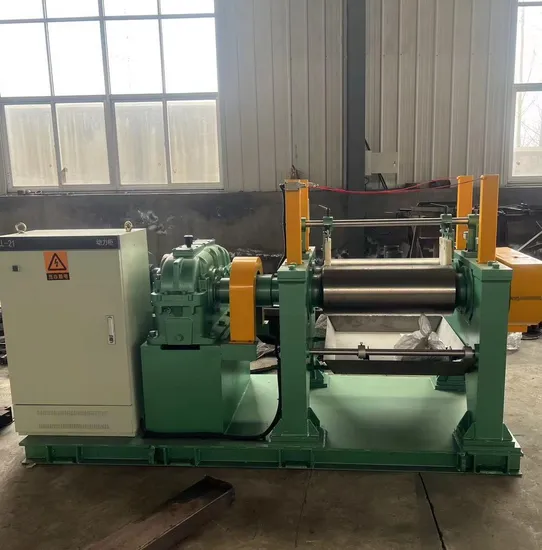

Xk-400 Xk-450 Xk-560 Two Roll Rubber Mixing Mill

Product Description

XK-400 XK-450 XK-560 Two Roll Rubber Mixing Mill
1.Nylon bush & ball bearing bush
2.Hardened and plant gear box
3.CE,SGS,ISO
Rubber mxing mill is mainly used for warming, mixing and plastication of sizing.
ISO certificate
Direct manufacture since 1986
Good hard tooth surface reducer in use
Roller bearings in use
Low noise, long lifetime, save power up to 25%
Specifications
1. The roller is made of chilled cast iron. It is divided into hollowed roll and drilled roll. The inner of hollowed roll is machined. The hollowed roll surface can be smooth or grooved. The grooved roll has full grooved surface, partial grooved surface and so on.
2. The roll is supported by roller bearing so it has low noise and long service life.
3. The roll bearing adopts grease lubricating and oil lubricating.
4. The pressure transducer system is available for directly displaying the working pressure and control the feed. When over pressure, it will automatically stops and save or print the pressure value.
5. The product is complied with nation-established safety standard (this standard is identical with Europe standard. )
Working Principle:
Two rollers rotate reversely with different speed, so the colloidal particles are drawn into the gap of the two rollers by the Friction.
Use for:
This machine is mainly used in Rubber & Plastic Product factory for Natural Rubber Mixing(plasticating), Raw Rubber and Compound mixing, rubber warm-up mixing and pressing sheet.
Structure:
This machine consists of Base, Rack, Gland, Rollers, Bearing, Transmission device, Lubrication device, Decelerator, Adjustment device of the roller temperature, Emergency shutdown device and brake rigging and etc.
Features:
1'Two rollers are made from Chilled Cast Iron, smooth surface is highly polished and scratch proof by cutting knife: High hardness(68-75HSD) and wear-resistant;
2'The roller is hollow structure, which is for adjusting the temperature of the rollers by steam or cooling water in term of different request, Circulation of steam and cooling water is provided through the rolls to control the temperature;
3'There are two kinds of Nip adjustment mode for option: Manual or electric;
4'There are three kinds of Main bearings for option: Bearing or Copper bush or Nylon bush;
5'Machine will be tripped off if overloaded to protect valuable electrical circuit;
6'All electrical connections are well, short circuits is impossible by any means.
7'It can be with Stock Blender, or can provide provision to fit stock blender in future.
8'Provision for opening of Nip Guard is provided for the purpose of cleaning of rollers and nip;
9'Hand Operated Safety Switch is provided.

Type	Xk-160	Xk-250	Xk-300	Xk-400	Xk-450	Xk-560	Xk-660
Working diameter of rolls(mm)	160	250	300	400	450	560	660
Working length of rolls(mm)	320	620	750	1000	1200	1530	2130
Front roll surface speed(m/min)	8.95	14.1	15.1	18.65	24.26	27.72	28.6
Friction ratio	1:1.35	1:1.17	1:1.27	1:1.27	1:1.27	1:1.2	1:1.24
Max.nip(mm)	4.5	8	8	10	15	15	15
Capacity per.batch(kg)	1-2	8-15	15-20	18-35	25-50	35-50	165
Motor power (kw)	5.5	18.5	22	37	55	90	245
Overall dimension(mm	1380*860 *1320	3400*1500 *1800	3580*1550 *1695	4350*1850 *1785	5200*2380 *1840	5845*2284 *1978	7465*3662 *2080

Any question ,please send me a inqury ,looking forward to your kindly inquiry!

---
