D350 Digital Automatic Voltage Regulator AVR for Leroy Somer Generator

Product Details

Product Description

Product Description

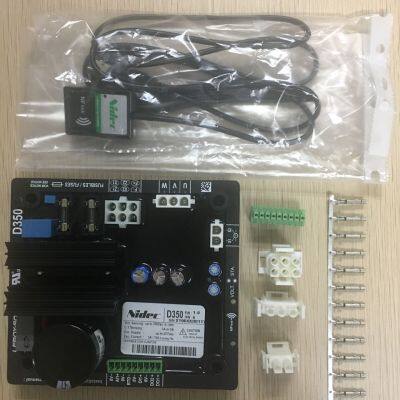

D350 Digital Automatic Voltage Regulator AVR for Leroy Somer Generator
The D350 digital automatic voltage regulator (AVR) for industrial alternators provides excitation current up to 5 A with excellent reliability for SHUNT, permanent magnet (PMG) or AREP (auxiliary winding) excitation types.D350 includes advanced protections such as over-excitation limitation and voltage sensing loss. It also includes speed detection capabilities, with over- and under-speed alarms. D350 also features voltage droop for genset parallel operation, and it is equipped with a Load Acceptance Module (LAM) to handle load impact events.
Key specifications

Technology	Digital
Excitation mode	SHUNT, AREP, PMG
Rated excitation current	5 A
Regulation accuracy (+/- %)	0.25 %
Frequency range	10 - 100 Hz
Voltage setting range (+/- %)	30 %
kU/F limitation	0.5 Loss of sensing voltage	✓
Over-excitation limitation	✓
Short circuit current limitation	✓
Voltage droop	✓
Parallel operation between alternators	✓
Load Acceptance Module (LAM)	✓

---
