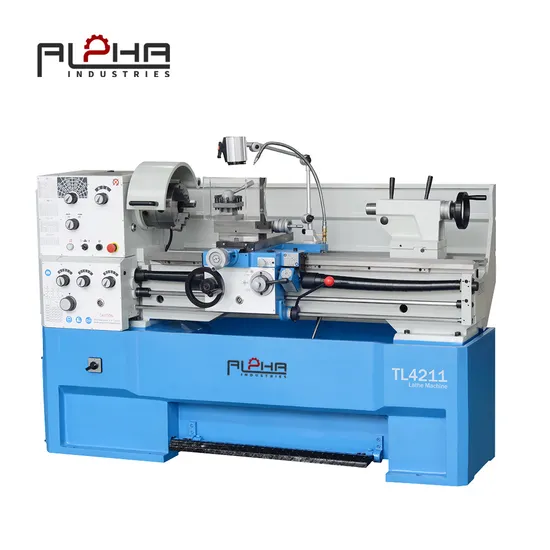

Turning Center Universal Horizontal Lathe Tl4211-Tl4216 High Precision Lathe Bench Lathe

Product Description

Product Parameters

Model No.	Unit	TL4211/TL4216
Main Data of Lathe
Max. swing diameter over bed	mm	Ø420
Max. swing diameter in gap x width	mm	Ø580x204
Max. swing diameter over cross slide	mm	Ø255
Height of spindle center to bed	mm	205
Height of spindle center to ground	mm	1180
Max. distance between centers	mm	1100/1600
Width of bed	mm	250
Max. size of tool shank (W x H)	mm	20x20
Max. travel of cross slide	mm	230
Main Data of Spindle
Spindle bore	mm	Ø52
Spindle head joining style		D1-6
Spindle reducing bush taper		MT6/ MT4
Spindle speed grade		16
Spindle speed range	r/min	45~2000
Cutting Thread Feed Range and Kind
Leadscrew diameter	mm	Ø28
Metric thread range & kind		0.2~14 mm (44 kinds)
Imperial thread range & kind		2~56TPI (42 kinds)
Module range & kind		0.2~3.5MP (34 kinds)
Diametral range & kind		8~56DP (25 kinds)
Longitudinal feed metric		0.030~2.062mm/rev (24 kinds)
Longitudinal feed imperial		0.0011"~0.0746~/rev (24 kinds)
Cross feed metric		0.005~0.365mm/rev (24 kinds)
Cross feed imperial		0.0002"~0.0134"/rev (24 kinds)
Tailstock Data of Lathe
Travel of tailstock sleeve	mm	120
Diameter of tailstock sleeve	mm	Ø50
Inside taper of tailstock sleeve		MT4
Motor Size of Lathe
Power of main motor	kW	3/4.5
Power of cooling pump	kW	0.125
Weight and Size of Lathe
Outline size(LxWxH)	cm	198/248x90x142
Packing size (LxWxH)	cm	208/258x84x168
Net weight of lather	kg	1100/1280
Gross weight of lathe	kg	1350 /1550

Standard Accessories

Face plate 350mm	Steady rest	Follow rest
Oil gun	Thread chasing dial	Operation manual
One set of wrenches	2 dead centers	Sleeve
Foot brake	Coolant pump	Halogen lamp
Splash guard	Thread dials	One piece iron casting stand
200mm 3 jaw chuck	250mm 4 jaw chuck and adapter (direct mount)
(direct mount)

Optional Accessories

QCTP(American type)	Driving plate	Taper turning attachment
Sino DRO(1m/1.5m-2axis)	Nr 12 standard for Brazil	Micro carriage stop
CE electric+chuck cover	Top slide cover	Lead screw cover
Live center	Drilling chuck	Cutting tools

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
