US$6,000.00-12,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Milling Machine
Extended Length and Thickness Saddle
Machine Table Travel
1000/320/400mm
Accessory
Machine Vice, Horizontal Arbor
Optional Accessory
Digital Readout,Clamping Kit
Transport Package
1800X1900X2250mm
Production Capacity
60 Sets / Month
Product Description

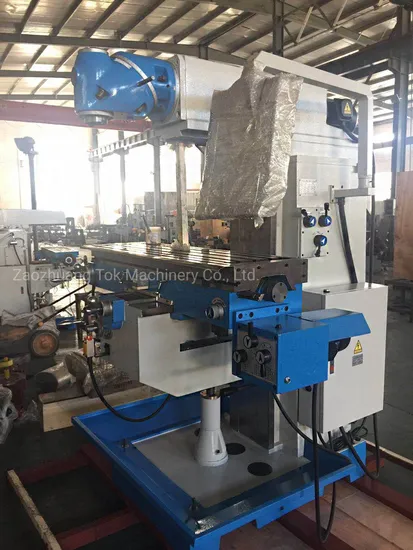

ram milling machine X6236B
Feature :
-vertical head can ratate +/- 360 degree, realize multiple surface processing with workpiece.
-full gear type headstock make the direct change between vertical and horizotnal milling without moving the ram
-auto feed on three axes
-hardened and ground table surface
-table swivel can be optional
-extended length and thickness, more rigid and stable
| Model | X6236B |
| Spindle taper | ISO40 (Vertical) ,ISO40 (H) |
| Diameter of quill | 100mm |
| Distance from spindle to table | 200-600mm |
| Distance from horizontal spindle to column | 0-400mm |
| Spindle speeds | 35-16 rpm 11 steps V
40-1300 rpm H |
| Distance between spindle axis and Cantilever | 350mm |
| Distance from spindle axis to column | 300-900 mm |
| Head swivel | 360 degree |
| Table size | 1250x360mm |
| Table travel(horizontal/cross/vertical) | 1000/320/400 mm |
| Feeding range of longitudinal,corss travel | 22-555 mm/min |
| X,Y-axis rapid feed speed | 1080 mm/min |
| Z-axis rapid feed speed | 590 mm/min |
| Max.weight of workpiece | 400kg |
| T-slot number width distance | 3-18-80 mm |
| Milling head moving vertical | Rectangular |
| Cross slide way | Rectangular |
| Longitudinal guideway | Dovetail |
| Main motor power | 3 KW V/H |
| X,Y axes feeding motor | 750w |
| Coolant pump motor | 90W 25L |
| Size | 2220x1660x2020 mm |
| N.W/G.W | 2350/2550 kg |
OPTIONAL ACCESSORIES
• Standard Swivel Base Vice
• Super Open Milling Vice
• Clamp Kit
• Dividing Head
• Rotary Table
• Dividing Plates
• Drill Chuck
• 3 Jaw Chuck for Dividing Head
• Milling Collet Chuck Set
• Boring Head
• Reducing sleeve Set
• Combination Shell End Mill Arbors
• Long Milling Arbors
• Angle Plate
>>
