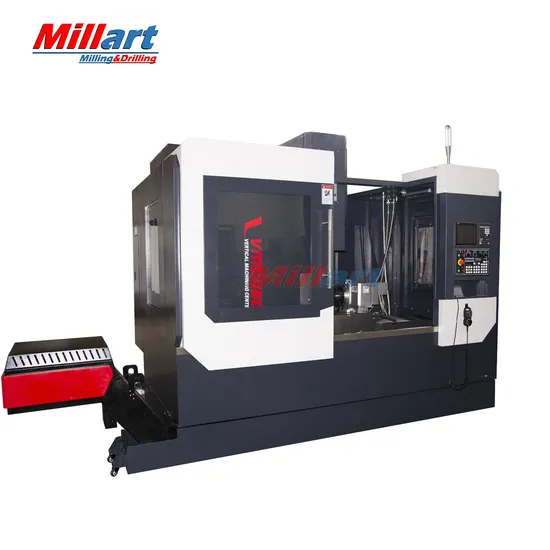

CNC Machining Center Vmc1160 Vertical Machining Center

Product Description

VMC1160 GSK Siemens Fanuc Vertical CNC Milling Center Price
Main configuration & accessories:
1. Resin sand casting, Meehanite HT-300;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Roller type linear guideway from Taiwan
5. Ball lead screw from Taiwan
6. Standard with belt driven spindle, optional for direct driven spindle;
7. Taiwan pneumatic cylinder;
8. Taiwan ATC, umbrella type and disc type are available;
9. Import bearings for leadsrews;
10. Import coupling;
11. Headstock Nitrogen balance system as option;
12. Full enclosed cover;
13. Rigid tapping;
14. Spindle center ring blast;
15. Work lamp;
16. Pilot lamp;
17. USB and Internet interface;
18. Manual pulse generator (MPG);
19. Centralized automatic lubrication system.
20. Cooling system.
21. Heat exchanger for electrical cabinet ;
22. Leveling blocks & bolts;
23. Toolbox and tools;
24. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Technical parameter:

Item	Unit	VMC1160
Capacity
X axis travel	mm	1100
Y axis travel	mm	600
Z axis travel	mm	600
Spindle nose to worktable	mm	120-720
Spindle center to column	mm	650
Leadscrew size
Leadscrew diameter	mm	Φ40
Linear guideway width	mm	45/45/45
Worktable size
Worktable Length	mm	1200
Worktable width	mm	600
Max loading capacity	kg	800
Spindle
Spindle speed	rpm	8000
Main motor power	kw	7.5/11
Spindle taper		BT40
Feeding system
Fast moving speed (X/Y/Z)	m/min	36/36/36
Cutting speed	mm/min	1-10000
Feed motor power	kw	3/3/4.5
Tool Magazine
Capacity	pcs	Arm 24
Max tool diameter	mm	120
Max tool weight	kg	8
Max tool length	mm	300
Accuracy
Positioning accuracy	mm	0.008
Repeat accuracy	mm	0.005
Machine dimensions
Length	mm	3300
Width	mm	2400
Height	mm	2800
Weight	kg	6900

Standard accessories:
Fanuc 0i MF control system
Taiwan Spindle: 8000rpm
X/Y/Z axes: Fanuc servo drive motor
Main motor: Fanuc spindle motor
24 tools Umbrella type
USB for information transfer
Rough cutting of thread
Full closed cover
Automatic lubrication
Coolant system,
work lamp,
Tri-color indication lamp,
Air gun,
Heat exchanger in cabinet,
3-Axis linear guideway from Taiwan Hiwin,
Ball leadscrew from taiwan Hiwin,
Optional accessories:
Automatic chip conveyor & chip bucket (Chain type)
Automatic chip conveyor & chip bucket (Screw type)
Spindle direct driven, speed 12000 rpm
Spindle oil cooling
Spindle center water spray
Nitrogen balance cylinder
Air conditioner for electricity cabinet
4th Axis or 5th Axis
Company information:
FAQ:
1: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.

---
