Cashew Shell Biochar Carbonization Furnace Coconut Charcoal Pyrolysis Machine

Product Description

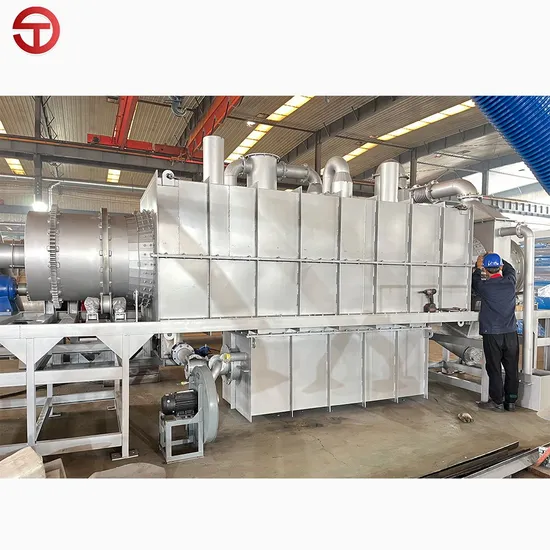

Biomass Pyrolysis Plant
Product Description
Biomass charcoal-making machine uses the most advanced pyrolysis carbonization technology to convert biomass into charcoal. Biomass pyrolysis equipment (two-layer continuous drum carbonization machine) is a process that combines coconut shells, walnut shells, apricot shells, hemp rods, sawdust, sawdust, rice husks, bamboo, eucalyptus, fungus residues, medicinal residues, furfural residues, and coffee grounds. It is special pyrolysis equipment for dry distillation and oxygen-free carbonization of carbon-containing small particle wood materials such as palm shells, peanut shells, and sunflower seed shells under high-temperature conditions pyrolysis machine.
Working Principle
Biomass Pyrolysis Machine Process
Biomass pyrolysis machine (two-layer continuous drum carbonization machine) is a professional pyrolysis equipment for continuous high-temperature heating and carbonization of biomass under anaerobic and oxygen-deficient conditions. Or gasification furnace, natural gas burner), combustible gas purification device, carbonization machine external heating furnace, feeding conveyor, cooling charcoal machine and control, etc. Decarbonization. The biomass is transported by the conveyor into the inner drum, and the waste heat in the furnace is used to dry and preheat the material to 200-250 °C, and then enter the outer drum for high temperature carbonization. Carbon monoxide, methane, ethane and other combustible gases produced in the carbonization process are separated from wood tar, wood vinegar, water and ash through the flue gas purification system to obtain pure combustible gases. The air is sent to the external heating furnace of the carbonization machine for full combustion , to heat the carbonization machine to achieve reciprocating cycle heating carbonization and continuous production. The carbonization temperature is generally controlled at /700-800 °C. , natural gas burners) to supply heat. After biomass pyrolysis, customers can get biomass charcoal, tar, wood vinegar and combustible gas from the charcoal production line.
Applications
This machine is suitable for all kinds of powder particles biomass carbonization forestry agriculture. Such as sawdust, wood chip, bamboo, coconut shell, cherry shell, jujube, walnut shell, apricot shell shell shell, peanut shell, rice husk, cotton stalk, straw, the bean curd, etc.
End Products
Device Configuration
Environmentally friendly Biomass Pyrolysis Machine, the use of carbonized flue gas purification into combustible gas generated in combustion itself, recycling to use, it can 24 hours of continuous production, has zero pollution, zero-emission, save labor, high capacity, energy-saving consumption, the advantages of the high degree of automation, advanced technology, which is suitable for large-scale production, with high carbonation rate, high carbon production rate, energy saving, environmental protection, high-efficiency advantages.
Product Parameters

Other Related Biomass Pyrolysis Machine Specification:

Model	Output(kg/h)	First layer diameter(mm)	Second layer diameter(mm)	Drum length(m)	Power(kw)	Dimension(m)
JTTJ1410/2	400-500	800	1400	10	30-40	11*1.5*2.5
JTTJ1610/2	600-800	1000	1600	10	40-50	11*2.0*2.8
JTTJ1810/2	700-1000	1200	1800	10	50-70	11*2.2*3.0
JTTJ2010/2	1100-1300	1400	2000	10	70-80	11*2.5*3.3
JTTJ2312/2	1500-2000	1600	2300	12	90-110	13.5*2.8*3.6
JTTJ2512/2	2200-2500	1800	2500	12	110-130	13.5*3.0*4.0
JTTJ2912/2	2700-3000	2200	2900	12	130-150	13.5*3.5*4.5
JTTJ3212/2	3300-3800	2500	3200	12	160-180	14.0*3.8*5.0
JTTJ3612/2	4000-4500	2900	3600	12	200-230	14.0*4.2*5.5

Note: The price above is just for reference, please feel free to contact us if you want to know more about different models or production lines. We can offer free customized proposals. After Sales Service
FAQ
Q1. What is the MOQ?
1 set.
Q2. Can I have different models at different prices?
Yes. There are different models according to different raw materials and different capacities.
Q3: Which areas do you serve?
We have a very big market in China local market, at the same time, we have exported our carbonization furnace all over the world, including Europe, Africa, Middle-East, Asia, North America South America and so on, total more than 30 countries in the world.
Q4. How long is the quality guarantee?
One year.
Company Profile
Zhengzhou Jiutian Machinery Equipment Co., Ltd. is a comprehensive enterprise with research, design, manufacture, sales, and service in the drying industry. The company has 8 series of equipment such as dehydration series, drying series, carbonization series, crushing series, granulation series, conveying series, environmental protection series, and electronic control equipment, and has more than 150 kinds of high-tech products.
More than 300 customers from Southeast Asia, Central Asia, Eastern Europe, Africa, and South America came to our company for smooth communication. Most of our customers are very satisfied with the solutions and services we provide.
Contact Us
If you are interested in our products or have any questions, please feel free to contact us, we'll reply to you within 24 hours!

---
