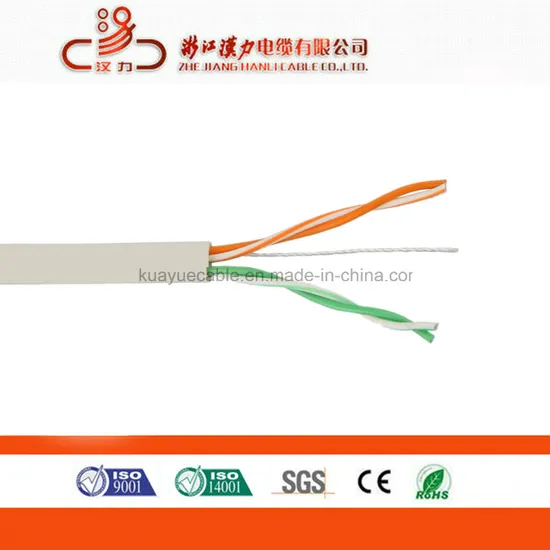

Sample Customization 2 Pair UTP Cat3 Cable 0.5mm Bc/CCA Indoor Telephone Cable

US$15.00-30.00 50 Boxes (MOQ)

Basic Info.

Model NO.
cat3
Cover Material
PE
Type
Cat 3
Material Shape
Round Wire
Conductor Type
Solid
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS, CCC
Model
Cat3
Brand
Kuayue
Color
Grey
Length
305m/500m
MOQ
15km
Conductor
2*2*0.52mm Bare Copper
Insulation
0.92mm HDPE
Transport Package
Any Packing Is Available as Your Request.
Specification
wooden reel, carton, pallet
Trademark
Hanli
Origin
Zhejiang
HS Code
8544491100
Production Capacity
1400km/Week

Product Description


1.Conductor :0.5BC,0.51BC or CCA
2,insulation:HDPE ID:0.92mm
3,Twisted pairs.
4,Shield:PET
5,jacket :PVC,LZSH or PE
6,Nominal diameter: 2.4 X 5.8±0.2mm
7,Average thickness: 0.55mm
8,Messenger: no
9.Frequency: 100MHz
10,Resistance Unbalance,maximum : 4.5%
11,Mutual Capacitance :5.6 nF/100 m @ 1 kHz
12,Dielectric Test: DC 2500V/2min at 20ºC
13,Application: 100Base T4, 100Base-TX,100VG-AnyLan,1000 Base-T(Gigabit Ethernet),155Mbps ATM,622Mbps ATM.
14, Standard: international ISO/IEC 11801; USA ANSI/TIA/EIA-568B.
15,Operating temperature range: -20 to 75°C
16,305meters pull box or 500meters wooden drum
17,OEM order is welcome
Frequency(MHz) Impedance(Ω) Attenuation(dB/100m) NEXT(dB) Nominal Velocity of Propagation
1MHz 85~115 2.1 64 NVP 69%
4MHz 4.3 55
10MHz 6.6 49
16MHz 8.2 46
20MHz 9.2 44
31.25MHz 11.8 42
62MHz 17.1 37
100MHz 22.0 34
