GRP FRP Glassfiberglass Reinforced Plastic Pipe Duct Tube Fittings Production Equipment, Filament Winding Machine

Product Description

I. Company Profile
Our company is a member of the FRP Industry Association, and is a scientific and technological enterprise specializing in the development and production of FRP equipment. Since its establishment, the company has been committed to the research and development of FRP equipment, and has successfully produced the fifth generation winding equipment so far. The technical level occupies a leading position in the same industry in China. At present, the equipment produced by our company is sold all over the country. Has achieved a good reputation, we are willing to provide first-class quality, first-class after-sales service for the majority of users.
II. Main performance indicators and technical parameters:

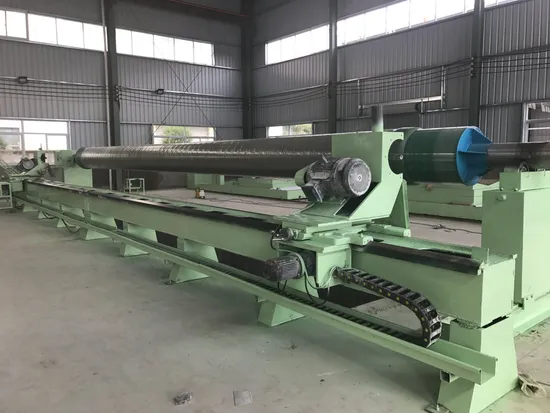

FWJS-3500 micro-control filament winding equipment produced by our company is a high-tech mechatronics product. The whole winding process is controlled by microcomputer program, which has the characteristics of beautiful line shape, high accuracy and convenient operation and use. The host computer of microcomputer control system is the industrial computer of Taiwan Province Yanhua Company. Main frequency 1G, RAM 128M, 32M DOM, SVGA color display, industrial keyboard, advanced selection, reliable performance and high control accuracy. The program adopts adaptive control technology, which strictly maintains the motion relationship between the mandrel and the guide wire head under any conditions, and has strong adaptability and can automatically correct errors. When producing different products, it is very convenient to change the speed ratio relationship through the method of parameter satisfaction, and the system can store Nx product parameters. The color Chinese display interface is adopted, which requires few input parameters, flexible and convenient parameter setting, and has alarm and protection functions. Equipped with manual/automatic switching function, which is convenient for users to operate.
The main performance indicators are as follows:
1. The diameter of production pipeline is φ300~φ3500mm.
2. The length of production pipeline is 12000mm.
3. The maximum speed of the winding machine output shaft is 50rpm.
4. The maximum speed of winding trolley is 55m/min.
5. The maximum yarn width is 220mm.
6. The maximum demoulding force is 700KN.
7. The rated working pressure of hydraulic system is 14Mpa.
8. The center height of demoulding machine is 2800 mm.

---
