High Efficient Plastic Waste Scrap Metal Plywood Wood Pallet Plastic PP/PE/HDPE/LDPE/PVC Lump Pipe Recycling Single Shaft Shredder

Product Description

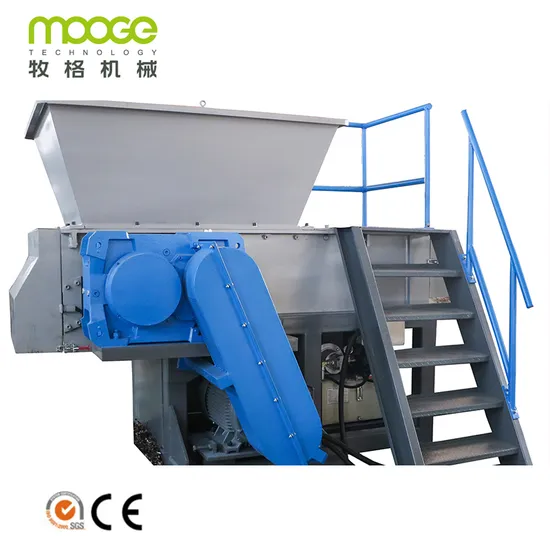

High Efficient Plastic Recycling Single Shaft Shredder Machine
Product Description
Plastic shredder/shredding machine was main used to shred different kinds of plastic materials, especially very large waste plastic.
single shaft shredder machine can shredding plastic lumps, barrels, pipes , wood, wood pallet, big block material, plastic
container, plastic chair , plastic pallet, woven bags ,jumbo bags, cable tc.
Our company has many years experience in manufacturing the plastic shredder machine, we supply 300~2000 kg/h capacity . we also can make it according to your requirement.
Product Parameters

Model	VS-2860	VS-4080	VS-40100	VS-40120	VS-40150	VS-48150
Motor	22KW	37KW	45KW	55KW	75KW	90KW
Rotor Speed	83RPM	83RPM	83RPM	83RPM	83RPM	83RPM
Rotor Diameter	280mm	400mm	400mm	400mm	400mm	480mm
Rotor Blades Qty	26PCS	38PCS	45PCS	58PCS	74PCS	111PCS
Fixed Blades Qty	1PCS	2PCS	2PCS	2PCS	3PCS	3PCS
Screen Diameter	60mm	60mm	60mm	60mm	60mm	60mm
Capacity	300kg/hr	600kg/hr	800kg/hr	1000kg/hr	1500kg/hr	2000kg/hr

Detailed Photos
Rotary shaft The rotary shaft made by high quality carbon steel, anti-worn
Rotary blade Move blade made by D-2, by bolt fixed in the rotor shaft ,it is easy for worker change it . blade can use 4 times when the blade worn after using long time
Fixed Blade Using D-2 materail, USA Standard, HRC 58-59 more better than SKD-II, We also can use DC-53 material
Screen the screen use 10mm thickness carbon steel made, with 60mm screen, the flakes will easy shredding and down
Motor, Using Beide brand motor(siemens standard motors ltd in china)Bearing, Using Japan famous brand- NSKoriginal import from Japan factory We also supply NSK bearing for customerContactor, Use World Famous brand in us control systemPLC, Use Siemens PLC for shredder machineAutomatic control rotor shaft postive, negative rotary
