Product Description

Product Description

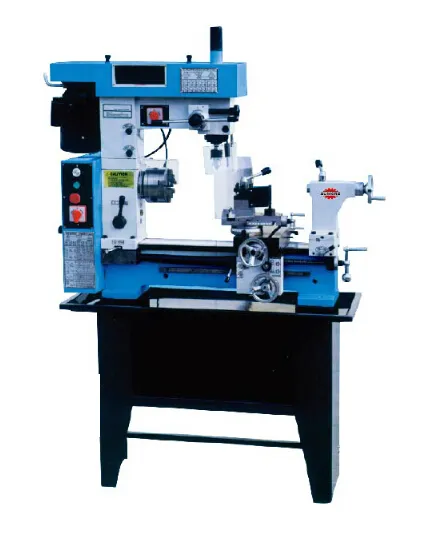

1000MM Metal Cutting Multi-Purpose Lathe Mill Drill Combo Machine
Quick Detail:
Swing over bed:420mm
Distance from centers:500/800mm
Hole through spindle:28mm
Table size:475*160mm
Description:
SP2305 Milling machine lathe multi-purpose machine belongs to one of our most economic manual multi-purpose machine. It is new condition not used metal cutting multi-purpose machine. And it is small in size and delicate in design. This lathe mill combo machine is made in China. The main features are as below:
1. Compact, versatile combination machine.
2. Adjustable height drill/mill head increases capacity.
3. Large MT4 spindle bore.
4. Fine feed handle and clutch for precision milling.
5. Headstock provides two step of feeds.
6. Spindle is supported by high precision bearing.
7. Headstock is constantly oiled during operation.T-slot cross slide.Adjustable gibs for the slideway.
8. Power longitudinal & cross feed.
9. High precision chuck. Equipped with emergency stop button.
10. Tailstock may be offset for turning taper
Product Parameters

Model	SP2305
Swing over bed	420mm
Distance between centers:	500/800mm
Max.Vertial travel	440/740mm
Spindle taper	MT4
Hole through spindle	Φ28mm
Spindle speed	7 / 160-1360rpm
barrel travel	70mm
taper of center	MT3
Metric/inch thread range	0.2-6mm / 4-120t.p.i.
longitudinal range of automatic feeding	0.05-0.35mm
cross range of automatic feeding	0.05-0.35mm
Drilling and milling
Drilling capacity	Φ22mm
Table size	475x160mm
End milling capacity	Φ28mm
Face milling capacity	Φ80mm
Max.distance between spindle center and column	285mm
Max.distance between spindle nose and table	306mm
Spindle stroke	Φ110mm
Spindle taper	MT3
Spindle speed	16/ 120-3000rpm
swivel angle of headstock	±180o
Main Motor power/Drilling and milling motor	0.55/0.55 kw
Packing size	1130/1430x580x1100mm
N.W./G.W.	245/280 (275/325) kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
