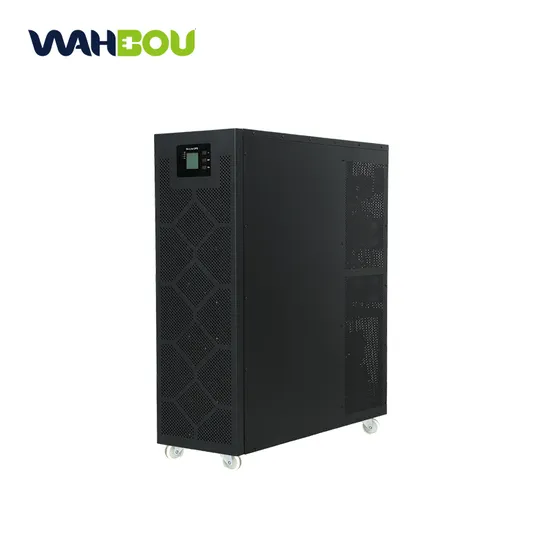

Wahbou High Frequency Three Phase Input Three Phase Output ST01 60kVA Online UPS High Frequency Power Supply
| Model | VT33 60KS | VT33 80KS |
| Rated Power | 60kVA/54kW | 80kVA/72kW |
| Input | Voltage Range | 208-478Vac 3P4W+G |
| Working Frequency Range | 45-55Hz at 50Hz/ 54-66Hz at 60Hz (self-adapting) |
| Input Power Factor | ≥0.99 |
| Output | Rated Voltage and Accuracy | 380/400/415Vac(1±1%) 3P4W+G |
| Output Frequency | Synchronized with input ; mains frequency ≥ maximum ±10%, output frequency is 50(±0.2%)Hz ;50/60±0.2% (battery) |
| Rated Current | 15A |
| Output Power Factor | 0.9 |
| Output Harmonic Wave | ≤2% liner ; ≤5% non-liner |
| Crest Factor | 3: | 1 |
| Output Overload | Load≤110%: 60 mins; Load≤125%: 10 mins; Load≤150%: 1 min; Load≥150% shutdown immediately |
| Conversion time between Mains Power and Battery | 0ms |
| Efficiency | normal mode ≥94.5% |
| Battery | Rated Voltage | default ±192Vdc |
| Quantity | 32-40 |
| Charging Current | 20A max |
| Dimension (LxWxH) mm | 865x300x960 |
| Weight | 85.5kg |
| Working Temperature | 0ºC-40ºC |
| Altitude | <1500m |
| Storage | -25~55ºC |
| Relative Humidity | 0-95% (non-condensing) |
