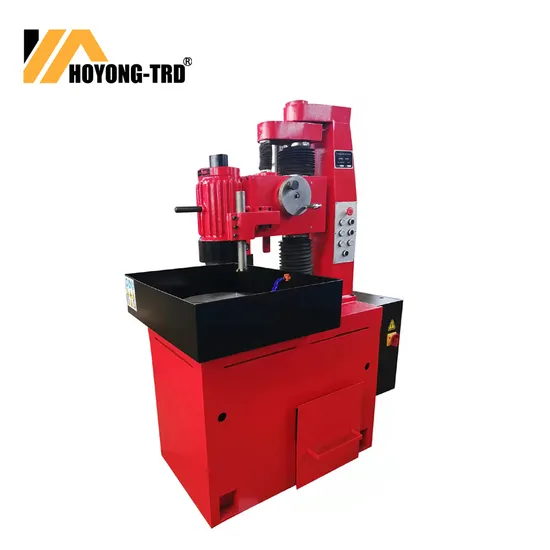

Automobile Engine Flywheel Grinding Machine Fg500

US$5,000.00-10,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

FG500

Type

Surface Grinding Machine

Processing Object

Metel

Abrasives

Grinding Wheel

Controlling Mode

Artificial

Automatic Grade

Manual

Cylindrical Grinder Type

Universal Cylindrical Grinder

Precision

Certification

CE, RoHS, ISO 9001

Condition

New

Center Height

180mm

Dia Ground(O.D)

8-320

Max Length Ground(O.D)

1000

Center Taper

Mt4

Transport Package

Plywood Case

Specification

3490kgs

Trademark

HOYONG-TRD

Origin

Shandong, China

HS Code

8460190000

Production Capacity

10 PCS/Month

Product Description

Features:Regrinding the automobile engine flywheel disc, clutch friction plate in repaire automobile maintenance & repair service. SPECIFICATIONS:

Model	FG500
Table Diameter	450mm
The Max diameter of repairing Flywheel	500 mm
The Max Distance from spindle to table	200mm
Rotational Speed of Grinding wheel	2800r/min
The rotational speed of table	17/34r/min
The motor of grinding wheel	3 kw
N.W./G.W.	690/750kg
Overall dimensions	1200X800X1750(mm)
Packing size	1300x820x1900mm
