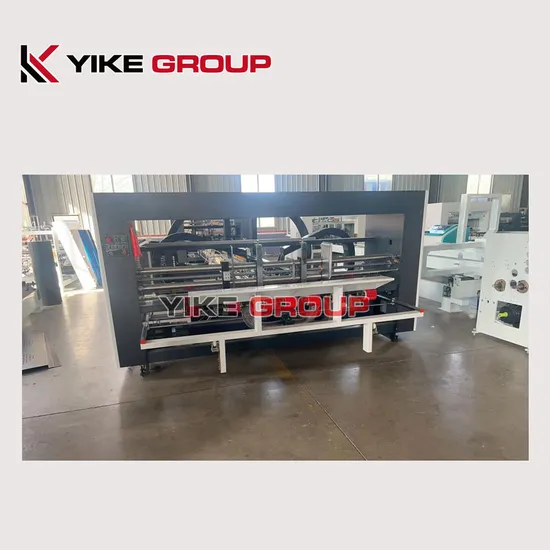

YK-1224 Preferred Automatic Folder Gluer Machine For Carton box gluing

Product Description

YK-1224 Automatic Folder Gluer Machine
II. Gluing and folding part for YK-1228 Automatic Folder Gluer Machine To Make Carton Box 1.The main motor adopts frequency conversion speed regulation system without noise, flexible and stable speed regulation.
2.Imported high-friction synchronous belts are used to transport cardboard, automatic stacking, strong suction, preventing belt slippage, accurate and reliable paper feeding, and no deviation.
3.Stainless steel wheel is used to apply glue, the amount of glue is even, trouble-free and glue-saving.
4.The folding part is equipped with a cardboard correction device and an indentation correction device.
5.There are two rows of adjustable inner positioning guide wheel system in the folding part, which has higher forming precision.
6.Folding speed 0-230m/min.
Installation Instructions Equipment installation and power distribution for YK-1228 Automatic Folder Gluer Machine To Make Carton Box 1. The installation requires a space of 15×4.2×3 (meters). For the convenience of operation and production, the two sides must be at least 1 meter away from the wall. The ground must be flat, and the equipment working surface must be adjusted horizontally.
2. This equipment uses 415V AC power supply. The power supply is directly connected to the input end of the distribution box.Please refer to the circuit schematic diagram for details. (If 110V voltage is required, please inform in advance).
3. Before starting the equipment during trial operation, make sure that all parts are installed and connected correctly, there are no foreign objects on the chains and belts, and the equipment can be operated normally only after it is running normally.
Note: The internal parameters of the microcomputer have been set and locked. Please do not change it without authorization, which may cause it to fail to function normally. Packaging & Shipping

---
