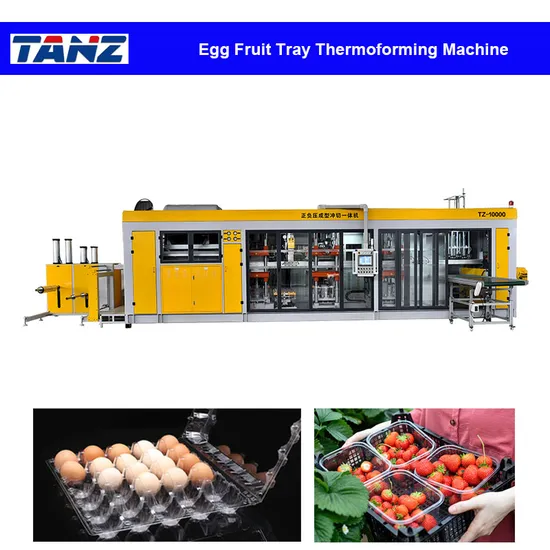

Plastic Clamshell Package Fruit Egg Tray Box Seedling Tray Electronic Tray Lid Plate Flowerpot Thermoforming Machine

Product Description

How To Choose A Suitable Thermoforming Machine for your products and capacity requirements?
3 In 1 4 In 1 Plastic Clamshell Package Fruit Egg Tray Box Seedling Tray Electronic Tray Lid Plate Flowerpot Thermoforming Making Machine


1.Fully -automatic disposable food container manufacturing machine is the largest formation area developed by Taizhang Machinery.
The molding area can reach 850mm*720mm,The maximum depth of the products that can be made is 135mm, and the thickness of the board can be 0.2mm-2mm.
The molding speed is higher.The device also collects materials, heating, molding, punching, cutting, palletizing, and waste recycling. Driven by the servo motor. 15 years of production experience, the equipment is more stable, efficient, and can safely produce!

2.In-mold punching and cutting(two stations) Shift-mould punching(three stations) Shift-mould punching and cutting(four stations) Punching function:fully automatic punching Indentation function : accurate indentation line,crease line anti-fatigue long life, no breakage Equipment structure is tightly constructed and compact, small footprint Reduced product spacing, material saving Solution of pure transparent PP moulding, solution of the problem of cold punching and cutting rupture of CPET PLA BOPS does not produce plastic powder, burr automatic punching and cutting ,stacking and counting, robotic gripping, automatic conveying and automatic loading 400KG only need 1-2 works to pack.

Suitable Sheet Materials
PP, transparent PP, PE, PS, HIPS, KPS, PVC, PET, GPET, ABS, and all other heat formed processed sheet materials.
Equipment operation overview
1. The sheet material enters the automatic feeding system through the automatic feeding system.
2. The feeding amount of the sheet is controlled by the photoelectric switch, and it enters the oven through the automatic feeding chain track.
3. The sheet material enters the (first station) forming system after being heated by the automatic feeding chain track in the oven, and the positive and negative pressure forming process is completed by cooling and forming in the mold.
4. The formed sheet material enters the (second station) punching system through the automatic feeding chain track to complete the product punching.
5. After punching, the sheet material enters the (third station) punching system through the automatic feeding chain rail to complete the product punching.
6. After punching, the sheet material enters the (fourth station) stacking system through the automatic feeding chain track to complete the stacking of products. The waste enters the waste automatic winding system through the automatic feeding chain track, completing the waste winding.
7. The stacked products are automatically grabbed by the robotic arm and fed into the conveying system, entering the packaging station, and then packaged into the box.

Features
1. In mold punching (two stations), moving mold punching (three stations), moving mold punching (four stations)
2. Punching function: fully automatic punching
3. Indentation function: The indentation line is precise, and the crease line has a long fatigue life and does not break
4. The equipment structure is compact with a small footprint
5. Reduce product spacing and save materials
6. Solve the problem of pure transparent PP sheet forming and cold punching and cutting fracture of CPET PLA BOPS
7. No plastic powder or burrs generated
8. Automatic punching, stacking counting, mechanical arm grabbing, and automatic conveying
9. Automatic feeding 400KG
Product Parameters

Name	Specifications
Forming Length	400-850mm
Forming Width	420-720mm
Forming Depth	0-110mm
Suitable Materials	PS,PP,PET,PVC,BOPS,PLA,etc
Voltage	380V 3N 50HZ	Three-phase four-wire 50HZ
Electric Furnace Rated Voltage	45KW	Max 109kw
Production Speed	3 seconds/time	20 times/minute
Hole Punching Max. Pressure	50 tons
Cutting Max. Pressure	50 tons
Forming station Max.Pressure	55 tons
Electric Furnace Heating Area	1750x750mm	6 rows x 14pcs hot bricks
Machine Host Size	L8800xW2150xH2800mm	Four station:(forming,punching,cutting,stacking)
Overall Length Of The Machine	12300mm	Host,feeder,roll scrap machine
Total Machine Weight	11 tons	host,feeder, roll scrap machine

Equipment Parameters:

Name	Place of origin, brand	Specifications, remarks
Vacuum pump	Weili Rietschle	100m3/HR 4HP
Spray gun	"Taizhang" customization	A100-P10
Temperature control	Aoyi	Aoyi
Cylinder	"Yade Rong" TaiZhang Customization	8kg/cm2
Solenoid valve	CKD	FS3 Series/FS2 Series
Heating brick	Ceramicx/Elstein	125x125mm 220V/650W
Chiller	Taizhang Custom	3HP
Intermediate relay	Omron	MK3P-1
Water, oil isolation	CKD	Triple
Control panel	"Hequan idec"	ASS Series
Control switch	"Fuji""Fuji"	EA Series
Touchscreen	Willen	10 inches
Servo system	"Safide" customization	3.8KW

Scope of application:
Production Process
Relative Machines

Plastic Sheet Extrusion Machines
Taizhang provide a variety of plastic sheet extrusion production line solution, such as PET, PP, PE, PS, ABS, PC, PMMA, PLA, etc. Widely used in plastic sheet thermoforming industry.
Plastic Sheet Thermoforming Machines:
Taizhang provide professional plastic sheet thermoforming production solution, widely suitbale for produciton of plastic food container, fruit egg tray, seedling tray, electronic tray, plastic cup, lid, plate, flowerpot,etc.
Plastic Cup Making Machine
Taizhang pisposable cup making machines,they are widely
used for plastic milk tea cups, coffee cups, disposable watercups, fast food box,plastic lid,fruit box,fresh food tray,etc.
