Steel Skeleton Wire Composite HDPE Pipe with 50 Years Guarantee

Product Description

Product Description

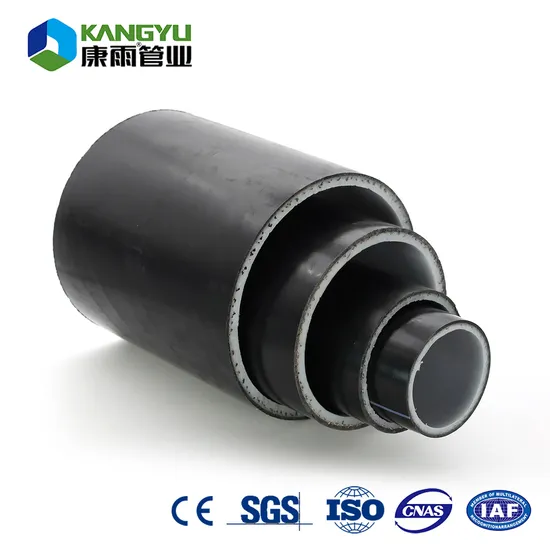

HDPE steel wire skeleton plastic composite pipe is a new type of composite structural wall pipe that uses high-strength steel wire and polyethylene plastic as raw materials, wrapped high-strength steel wire as the core layer, and high-density polyethylene plastic as the inner and outer layers to form an overall pipe wall. The addition of steel wire reinforced mesh to composite pipes not only greatly improves the pressure resistance of the pipes compared to HDPE solid wall pipes, but also retains the excellent corrosion resistance and scale free characteristics of HDPE solid wall pipes. Its reinforcing body is wrapped in continuous thermoplastic, ensuring the isolation of the steel wire from the outside, prolonging the service life of the steel wire and ensuring the long-term pressure resistance of the pipe. Steel wire mesh winding forming ensures that the composite pipe has a certain degree of flexibility in the axial direction while maintaining a low linear expansion coefficient, and has strong environmental adaptability. Pipe materials are widely used in the fields of water and gas supply, and are a new and practical type of pipe material mainly used in petroleum, municipal construction, ship, coal mine gas drainage, engineering well, pumping, chemical, energy, metallurgy, non-ferrous metals, electric power, environmental protection, food and other industries.Producing Advantage
1.Steel skeleton composite pipe higher compressive pressure and creep resistance.
2. greater rigidity and impact resistance than ordinary Hdpe pipes, similar to the low linear expansion coefficient of steel pipes.
3. Smooth inner wall, no scaling, low water flow friction resistance, high water delivery capacity, and reduced energy consumption.
4. Good corrosion resistance, the inner and outer layers of the pipe are made of plastic, which has the same excellent anti-corrosion performance as plastic pipes.
5. Lightweight, convenient for loading, unloading and transportation.
6. Adopting electric fusion connection, the construction is fast and convenient, and the joint does not leak.
7. Due to the composite structure of steel and plastic materials, it overcomes the rapid stress cracking phenomenon of plastic pipes.
8. Good wear resistance, with a service life of 50 years under normal use.
Producing Details

PressureOD(mm)	PN0.6MPa SDR 26Thickness(mm)	PN0.8MPa SDR 21Thickness (mm)	PN1.0MPa SDR 17Thickness (mm)	PN1.25MPa SDR 13.6Thickness (mm)	PN1.6MPa SDR 11Thickness (mm)
63			3.7	4.7	5.8
75			4.5	5.6	6.8
90		4.3	5.4	6.7	8.2
110	4.2	5.3	6.6	8.1	10.0
125	4.8	6.0	7.4	9.2	11.4
140	5.4	6.7	8.3	10.3	12.7
160	6.2	7.7	9.5	11.8	14.6
180	6.9	8.6	10.7	13.3	16.4
200	7.7	9.6	11.9	14.7	18.2
225	8.6	10.8	13.4	16.6	20.5
250	9.6	11.9	14.8	18.4	22.7
280	10.7	13.4	16.6	20.6	25.4
315	12.1	15.0	18.7	23.2	28.6
355	13.6	16.9	21.1	26.1	32.2
400	15.3	19.1	23.7	29.4	36.3
450	17.2	21.5	26.7	33.1	40.9
500	19.1	23.9	29.7	36.8	45.4
560	21.4	26.7	33.2	41.2	50.8
630	24.1	30.0	37.4	46.3	57.2
710	27.2	33.9	42.1	52.2
800	30.6	38.1	47.4	58.8
900	34.4	42.9	53.3
1000	38.2	47.7	59.3
1200	45.9	57.2

Company Profile
Our History
Shandong Kangyu Pipe Industry Co., Ltd., founded in 2000, as a professional manufacturer and exporter specializing in the productions of HDPE PIPE AND FITTINGS, PPR PIPE AND FITTINGS PVC PIPE, PE-RT, PB plastic pipes, and fittings. Located in Linyi City, Shandong province, China, we are close to Qingdao port.
We devote ourselves continuously to international trade and supply pipeline dealers who come from all over the world with customized services.
Our Factory
In order to build a modern factory, we invest in a series of professional mechanical equipment. The annual output amounts to 30000 tons, which can fill up 3000 containers.
The excellent machinery and consummate management system can reduce cost, shorten delivery time and ensure the quality of every product.
Certifications
FAQ
Q1: May I get one sample before placing order?
A: Yes, Sample are available. For normal products, samples are for free and you just need to bear the freight; For those high value products, you just need to freight and certain product cost. When we both cooperate for some times or when you are our VIP customer, free sample will be offered when you need.
Q2: Which payment is available for your company?
A: T/T, L/C or Ali trade insurance. You can choose the one which is convenient for you.
Q3: How and when can I get my goods after payment?
A: For small quantity products, they will be delivered to you by international courier(DHL, FedEx, TNT etc.) or by air. Usually it will cost 3-5days that you can get the goods after delivery. For large quantity products,shipping by see is worthwhile.It will cost days to weeks to come to your destination port, which depends on where the port is.
Q4: Is there any possible to use my appointed label or package?
A: Yes. If needed, we'd like to use label or package according to your requirement.
Q5: How can you guarantee the goods you offer is qualified?
A: We always believe honesty and responsibility are basis of one company, so whatever products we provide for you all are qualified. We will have goods tested and provide COA before delivery for sure.
Q6: Is the price on this page correct?
A: The listed price is only for reference, for latest price, pls contact us directly.
Q7: How can I get some samples?A: We are honored to offer you free samples, just need to pay the freight cost.

---
