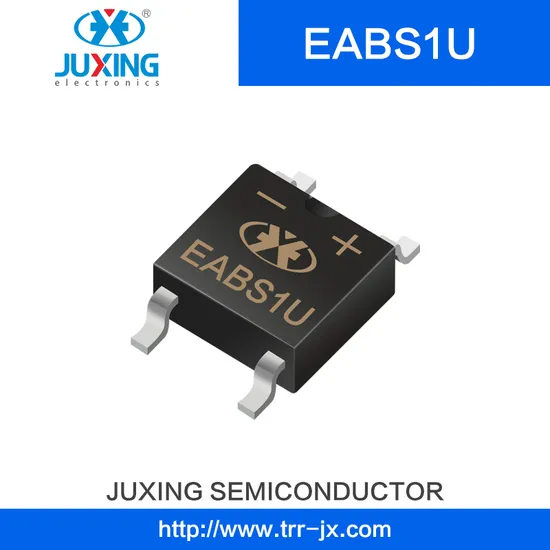

Juxing Eabs1u 100V1a Ifsm35A Vf0.95 Surface Ultra Fast Gpp Mount Bridge Rectifiers with ABS

Product Description

Product Description
Surface mount bridge rectifiers are a type of rectifier designed for surface mount technology (SMT) applications. These rectifiers are compact and designed to be mounted directly onto the surface of a printed circuit board (PCB), allowing for efficient assembly and space-saving in electronic devices. These types of bridge rectifiers are commonly used in applications where fast switching times and high efficiency are crucial, such as in power supplies for electronic devices and industrial equipment. They are designed to handle higher frequencies and provide a more stable DC output.
Product Parameters

Type	VRRM	I(AV)	IFSM	VF@I(AV)		IR	Trr	Package
	V	A	A	V	A	uA	ns
ABS2	200	0.8/1	30/35	1	0.8/1	5	-	ABS
ABS4	400	0.8/1	30/35	1	0.8/1	5	-	ABS
ABS6	600	0.8/1	30/35	1	0.8/1	5	-	ABS
ABS8	800	0.8/1	30/35	1	0.8/1	5	-	ABS
ABS10	1000	0.8/1	30/35	1	0.8/1	5	-	ABS
RABS2	200	1	30	1.3	1	5	150	ABS
RABS4	400	1	30	1.3	1	5	150	ABS
RABS6	600	1	30	1.3	1	5	250	ABS
RABS8	800	1	30	1.3	1	5	500	ABS
RABS10	1000	1	30	1.3	1	5	500	ABS
RABS22	200	2	60	1.3	2	5	150	ABS
RABS24	400	2	60	1.3	2	5	150	ABS
RABS26	600	2	60	1.3	2	5	250	ABS
RABS28	800	2	60	1.3	2	5	500	ABS
RABS210	1000	2	60	1.3	2	5	500	ABS
UABS2U	200	1	35	1	1	5	50	ABS
UABS4U	400	1	35	1.3	1	5	50	ABS
UABS6U	600	1	35	1.7	1	5	75	ABS
UABS8U	800	1	35	1.7	1	5	75	ABS
UABS10U	1000	1	35	1.7	1	5	75	ABS
UABS22	200	2	60	1	2	5	50	ABS
UABS24	400	2	60	1.3	2	5	50	ABS
UABS26	600	2	60	1.7	2	5	75	ABS
UABS28	800	2	60	1.7	2	5	75	ABS
UABS210	1000	2	60	1.7	2	5	75	ABS
EABS1U	100	1	35	0.95	1	5	35	ABS
EABS2U	200	1	35	0.95	1	5	35	ABS
EABS4U	400	1	35	1.25	1	5	35	ABS
EABS6U	600	1	35	1.7	1	5	35	ABS
EABS21	100	2	60	0.95	2	5	35	ABS
EABS22	200	2	60	0.95	2	5	35	ABS
EABS24	400	2	60	1.25	2	5	35	ABS
EABS26	600	2	60	1.7	2	5	35	ABS
HBS402	200	4	130	0.98	4	5	-	HBS
HBS404	400	4	130	0.98	4	5	-	HBS
HBS406	600	4	130	0.98	4	5	-	HBS
HBS408	800	4	130	0.98	4	5	-	HBS
HBS410	1000	4	130	0.98	4	5	-	HBS
HBS602	200	6	130	0.96	6	5	-	HBS
HBS604	400	6	130	0.96	6	5	-	HBS
HBS606	600	6	130	0.96	6	5	-	HBS
HBS608	800	6	130	0.96	6	5	-	HBS
HBS610	1000	6	130	0.96	6	5	-	HBS
HBS802	200	8	130	1	8	5	-	HBS
HBS804	400	8	130	1	8	5	-	HBS
HBS806	600	8	130	1	8	5	-	HBS
HBS808	800	8	130	1	8	5	-	HBS
HBS810	1000	8	130	1	8	5	-	HBS
ULBF408	800	4	150	1	4	5	-	ULBF
ULBF410	1000	4	150	1	4	5	-	ULBF
ULBF608	800	6	200	1	6	5	-	ULBF
ULBF610	1000	6	200	1	6	5	-	ULBF
ULBF808	800	8	220	1	4	5	-	ULBF
ULBF810	1000	8	220	1	4	5	-	ULBF
MB05F	50	1	35	1	1	5	-	MBF
MB1F	100	1	35	1	1	5	-	MBF
MB2F	200	1	35	1	1	5	-	MBF
MB4F	400	1	35	1	1	5	-	MBF
MB6F	600	1	35	1	1	5	-	MBF
MB8F	800	1	35	1	1	5	-	MBF
MB10F	1000	1	35	1	1	5	-	MBF
RMB1FU	100	1	35	1.3	1	5	150	MBF
RMB2FU	200	1	35	1.3	1	5	150	MBF
RMB4FU	400	1	35	1.3	1	5	150	MBF
RMB6FU	600	1	35	1.3	1	5	250	MBF
RMB8FU	800	1	35	1.3	1	5	500	MBF
RMB10FU	1000	1	35	1.3	1	5	500	MBF
KMB12F	20	1	30	0.5	1	500	-	MBF
KMB14F	40	1	30	0.55	1	500	-	MBF
KMB16F	60	1	30	0.7	1	500	-	MBF
KMB18F	80	1	30	0.85	1	500	-	MBF
KMB110F	100	1	30	0.85	1	500	-	MBF
KMB22F	20	2	50	0.5	2	500	-	MBF
KMB24F	40	2	50	0.55	2	500	-	MBF
KMB26F	60	2	50	0.7	2	500	-	MBF
KMB28F	80	2	50	0.85	2	500	-	MBF
KMB210F	100	2	50	0.85	2	500	-	MBF
MB1S	100	1	35	1	1	5	-	MBS
MB2S	200	1	35	1	1	5	-	MBS
MB4S	400	1	35	1	1	5	-	MBS
MB6S	600	1	35	1	1	5	-	MBS
MB8S	800	1	35	1	1	5	-	MBS
MB10S	1000	1	35	1	1	5	-	MBS
UMB05S	50	0.5	120	1.1	0.5	5	-	SOF2-4S
UMB1S	100	0.5	120	1.1	0.5	5	-	SOF2-4S
UMB2S	200	0.5	120	1.1	0.5	5	-	SOF2-4S
UMB4S	400	0.5	120	1.1	0.5	5	-	SOF2-4S
UMB6S	600	0.5	120	1.1	0.5	5	-	SOF2-4S
UMB8S	800	0.5	120	1.1	0.5	5	-	SOF2-4S
UMB10S	1000	0.5	120	1.1	0.5	5	-	SOF2-4S
UMB10F	1000	0.5	120	1.1	0.5	5	-	SOF2-4F
DB101S	50	1	30	1.1	1	5	-	DB-1/DB-S
DB102S	100	1	30	1.1	1	5	-	DB-1/DB-S
DB103S	200	1	30	1.1	1	5	-	DB-1/DB-S
DB104S	400	1	30	1.1	1	5	-	DB-1/DB-S
DB105S	600	1	30	1.1	1	5	-	DB-1/DB-S
DB106S	800	1	30	1.1	1	5	-	DB-1/DB-S
DB107S	1000	1	30	1.1	1	5	-	DB-1/DB-S
DB151S	50	1.5	50	1.1	1.5	5	-	DB-1/DB-S
DB152S	100	1.5	50	1.1	1.5	5	-	DB-1/DB-S
DB153S	200	1.5	50	1.1	1.5	5	-	DB-1/DB-S
DB154S	400	1.5	50	1.1	1.5	5	-	DB-1/DB-S
DB155S	600	1.5	50	1.1	1.5	5	-	DB-1/DB-S
DB156S	800	1.5	50	1.1	1.5	5	-	DB-1/DB-S
DB157S	1000	1.5	50	1.1	1.5	5	-	DB-1/DB-S
DB201S	50	2	60	1.1	2	5	-	DB-1/DB-S
DB202S	100	2	60	1.1	2	5	-	DB-1/DB-S
DB203S	200	2	60	1.1	2	5	-	DB-1/DB-S
DB204S	400	2	60	1.1	2	5	-	DB-1/DB-S
DB205S	600	2	60	1.1	2	5	-	DB-1/DB-S
DB206S	800	2	60	1.1	2	5	-	DB-1/DB-S
DB207S	1000	2	60	1.1	2	5	-	DB-1/DB-S
DB301S	50	3	120	1.1	3	5	-	DB-S
DB302S	100	3	120	1.1	3	5	-	DB-S
DB303S	200	3	120	1.1	3	5	-	DB-S
DB304S	400	3	120	1.1	3	5	-	DB-S
DB305S	600	3	120	1.1	3	5	-	DB-S
DB306S	800	3	120	1.1	3	5	-	DB-S
DB307S	1000	3	120	1.1	3	5	-	DB-S
MB05M	50	1	35	1.1	1	5	-	MB-M
MB1M	100	1	35	1.1	1	5	-	MB-M
MB2M	200	1	35	1.1	1	5	-	MB-M
MB4M	400	1	35	1.1	1	5	-	MB-M
MB6M	600	1	35	1.1	1	5	-	MB-M
MB8M	800	1	35	1.1	1	5	-	MB-M
MB10M	1000	1	35	1.1	1	5	-	MB-M
TMBF201	100	2	60	1.1	2	5	-	DBF
TMBF202	200	2	60	1.1	2	5	-	DBF
TMBT204	400	2	60	1.1	2	5	-	DBF
TMBF206	600	2	60	1.1	2	5	-	DBF
TMBF208	800	2	60	1.1	2	5	-	DBF
TMBF210	1000	2	60	1.1	2	5	-	DBF
TMBF301	100	3	120	1.1	3	5	-	DBF
TMBF302	200	3	120	1.1	3	5	-	DBF
TMBT304	400	3	120	1.1	3	5	-	DBF
TMBF306	600	3	120	1.1	3	5	-	DBF
TMBF308	800	3	120	1.1	3	5	-	DBF
TMBF310	1000	3	120	1.1	3	5	-	DBF
TMBF401	100	4	150	1.1	4	5	-	DBF
TMBF402	200	4	150	1.1	4	5	-	DBF
TMBT404	400	4	150	1.1	4	5	-	DBF
TMBF406	600	4	150	1.1	4	5	-	DBF
TMBF408	800	4	150	1.1	4	5	-	DBF
TMBF410	1000	4	150	1.1	4	5	-	DBF
FMSB20B	100	2	50	1.3	2	5	-	DBF
FMSB20D	200	2	50	1.3	2	5	-	DBF
FMSB20G	400	2	50	1.3	2	5	-	DBF
FMSB20J	600	2	50	1.3	2	5	-	DBF
FMSB20K	800	2	50	1.3	2	5	-	DBF
FMSB20M	1000	2	50	1.3	2	5	-	DBF
FMSB30B	100	3	50	1.3	3	5	-	DBF
FMSB30D	200	3	50	1.3	3	5	-	DBF
FMSB30G	400	3	50	1.3	3	5	-	DBF
FMSB30J	600	3	50	1.3	3	5	-	DBF
FMSB30K	800	3	50	1.3	3	5	-	DBF
FMSB30M	1000	3	50	1.3	3	5	-	DBF
FMSB40B	100	4	50	1.3	4	5	-	DBF
FMSB40D	200	4	50	1.3	4	5	-	DBF
FMSB40G	400	4	50	1.3	4	5	-	DBF
FMSB40J	600	4	50	1.3	4	5	-	DBF
FMSB40K	800	4	50	1.3	4	5	-	DBF
FMSB40M	1000	4	50	1.3	4	5	-	DBF
UG2KB05	50	2	50	1.1	2	5	-	D3K
UG2KB10	100	2	50	1.1	2	5	-	D3K
UG2KB20	200	2	50	1.1	2	5	-	D3K
UG2KB40	400	2	50	1.1	2	5	-	D3K
UG2KB60	600	2	50	1.1	2	5	-	D3K
UG2KB80	800	2	50	1.1	2	5	-	D3K
UG2KB100	1000	2	50	1.1	2	5	-	D3K
UG3KB05	50	3	80	1.1	3	5	-	D3K
UG3KB10	100	3	80	1.1	3	5	-	D3K
UG3KB20	200	3	80	1.1	3	5	-	D3K
UG3KB40	400	3	80	1.1	3	5	-	D3K
UG3KB60	600	3	80	1.1	3	5	-	D3K
UG3KB80	800	3	80	1.1	3	5	-	D3K
UG3KB100	1000	3	80	1.1	3	5	-	D3K
UG4KB05	50	4	120	1.1	4	4	-	D3K
UG4KB10	100	4	120	1.1	4	5	-	D3K
UG4KB20	200	4	120	1.1	4	5	-	D3K
UG4KB40	400	4	120	1.1	4	5	-	D3K
UG4KB60	600	4	120	1.1	4	5	-	D3K
UG4KB80	800	4	120	1.1	4	5	-	D3K
UG4KB100	1000	4	120	1.1	4	5	-	D3K
UG6KB05	50	6	150	1.1	6	5	-	D3K
UG6KB10	100	6	150	1.1	6	5	-	D3K
UG6KB20	200	6	150	1.1	6	5	-	D3K
UG6KB40	400	6	150	1.1	6	5	-	D3K
UG6KB60	600	6	150	1.1	6	5	-	D3K
UG6KB80	800	6	150	1.1	6	5	-	D3K
UG6KB100	1000	6	150	1.1	6	5	-	D3K
UG8KB05	50	8	80	1.1	8	5	-	D3K
UG8KB10	100	8	80	1.1	8	5	-	D3K
UG8KB20	200	8	80	1.1	8	5	-	D3K
UG8KB40	400	8	80	1.1	8	5	-	D3K
UG8KB60	600	8	80	1.1	8	5	-	D3K
UG8KB80	800	8	80	1.1	8	5	-	D3K
UG8KB100	1000	8	80	1.1	8	5	-	D3K
KBP2005	50	2	45	1.1	2	5	-	KBP
KBP201	100	2	45	1.1	2	5	-	KBP
KBP203	200	2	45	1.1	2	5	-	KBP
KBP204	400	2	45	1.1	2	5	-	KBP
KBP206	600	2	45	1.1	2	5	-	KBP
KBP208	800	2	45	1.1	2	5	-	KBP
KBP210	1000	2	45	1.1	2	5	-	KBP
KBP3005	50	3	60	1.1	3	5	-	KBP
KBP301	100	3	60	1.1	3	5	-	KBP
KBP302	200	3	60	1.1	3	5	-	KBP
KBP304	400	3	60	1.1	3	5	-	KBP
KBP306	600	3	60	1.1	3	5	-	KBP
KBP308	800	3	60	1.1	3	5	-	KBP
KBP310	1000	3	60	1.1	3	5	-	KBP
KBP4005	50	4	80	1.1	4	5	-	KBP
KBP401	100	4	80	1.1	4	5	-	KBP
KBP402	200	4	80	1.1	4	5	-	KBP
KBP404	400	4	80	1.1	4	5	-	KBP
KBP406	600	4	80	1.1	4	5	-	KBP
KBP408	800	4	80	1.1	4	5	-	KBP
KBP410	1000	4	80	1.1	4	5	-	KBP
GBU4005	50	4	80	1.1	4	5	-	GBU
GBU401	100	4	80	1.1	4	5	-	GBU
GBU402	200	4	80	1.1	4	5	-	GBU
GBU404	400	4	80	1.1	4	5	-	GBU
GBU406	600	4	80	1.1	4	5	-	GBU
GBU408	800	4	80	1.1	4	5	-	GBU
GBU410	1000	4	80	1.1	4	5	-	GBU
GBU6005	50	6	120	1.1	6	5	-	GBU
GBU601	100	6	120	1.1	6	5	-	GBU
GBU602	200	6	120	1.1	6	5	-	GBU
GBU604	400	6	120	1.1	6	5	-	GBU
GBU606	600	6	120	1.1	6	5	-	GBU
GBU608	800	6	120	1.1	6	5	-	GBU
GBU610	1000	6	120	1.1	6	5	-	GBU
GBU8005	50	8	150	1.1	8	5	-	GBU
GBU801	100	8	150	1.1	8	5	-	GBU
GBU802	200	8	150	1.1	8	5	-	GBU
GBU804	400	8	150	1.1	8	5	-	GBU
GBU806	600	8	150	1.1	8	5	-	GBU
GBU808	800	8	150	1.1	8	5	-	GBU
GBU810	1000	8	150	1.1	8	5	-	GBU
GBU10005	50	10	175	1.1	10	5	-	GBU
GBU1001	100	10	175	1.1	10	5	-	GBU
GBU1002	200	10	175	1.1	10	5	-	GBU
GBU1004	400	10	175	1.1	10	5	-	GBU
GBU1006	600	10	175	1.1	10	5	-	GBU
GBU1008	800	10	175	1.1	10	5	-	GBU
GBU1010	1000	10	175	1.1	10	5	-	GBU
GBU15005	50	15	220	1.1	15	5	-	GBU
GBU1501	100	15	220	1.1	15	5	-	GBU
GBU1502	200	15	220	1.1	15	5	-	GBU
GBU1504	400	15	220	1.1	15	5	-	GBU
GBU1506	600	15	220	1.1	15	5	-	GBU
GBU1508	800	15	220	1.1	15	5	-	GBU
GBU1510	1000	15	220	1.1	15	5	-	GBU
GBU20005	50	20	240	1	10	5	-	GBU
GBU2001	100	20	240	1	10	5	-	GBU
GBU2002	200	20	240	1	10	5	-	GBU
GBU2004	400	20	240	1	10	5	-	GBU
GBU2006	600	20	240	1	10	5	-	GBU
GBU2008	800	20	240	1	10	5	-	GBU
GBU2010	1000	20	240	1	10	5	-	GBU
GBU25005	50	25	240	1.1	12.5	5	-	GBU
GBU2501	100	25	240	1	12.5	5	-	GBU
GBU2502	200	25	240	1	12.5	5	-	GBU
GBU2504	400	25	240	1	12.5	5	-	GBU
GBU2506	600	25	240	1	12.5	5	-	GBU
GBU2508	800	25	240	1	12.5	5	-	GBU
GBU2510	1000	25	240	1	12.5	5	-	GBU
GBL4005	50	4	100	1.1	4	5	-	GBL
GBL401	100	4	100	1.1	4	5	-	GBL
GBL402	200	4	100	1.1	4	5	-	GBL
GBL404	400	4	100	1.1	4	5	-	GBL
GBL406	600	4	100	1.1	4	5	-	GBL
GBL408	800	4	100	1.1	4	5	-	GBL
GBL410	1000	4	100	1.1	4	5	-	GBL
GBL6005	50	6	125	1.1	6	5	-	GBL
GBL601	100	6	125	1.1	6	5	-	GBL
GBL602	200	6	125	1.1	6	5	-	GBL
GBL604	400	6	125	1.1	6	5	-	GBL
GBL606	600	6	125	1.1	6	5	-	GBL
GBL608	800	6	125	1.1	6	5	-	GBL
GBL610	1000	6	125	1.1	6	5	-	GBL
GBL8005	50	8	150	1.1	8	5	-	GBL
GBL801	100	8	150	1.1	8	5	-	GBL
GBL802	200	8	150	1.1	8	5	-	GBL
GBL804	400	8	150	1.1	8	5	-	GBL
GBL806	600	8	150	1.1	8	5	-	GBL
GBL808	800	8	150	1.1	8	5	-	GBL
GBL810	1000	8	150	1.1	8	5	-	GBL
KBJ6005	50	6	120	1.1	6	5	-	KBJ
KBJ601	100	6	120	1.1	6	5	-	KBJ
KBJ602	200	6	120	1.1	6	5	-	KBJ
KBJ604	400	6	120	1.1	6	5	-	KBJ
KBJ606	600	6	120	1.1	6	5	-	KBJ
KBJ608	800	6	120	1.1	6	5	-	KBJ
KBJ610	1000	6	120	1.1	6	5	-	KBJ
KBJ8005	50	8	150	1.1	8	5	-	KBJ
KBJ801	100	8	150	1.1	8	5	-	KBJ
KBJ802	200	8	150	1.1	8	5	-	KBJ
KBJ804	400	8	150	1.1	8	5	-	KBJ
KBJ806	600	8	150	1.1	8	5	-	KBJ
KBJ808	800	8	150	1.1	8	5	-	KBJ
KBJ810	1000	8	150	1.1	8	5	-	KBJ
KBJ10005	50	10	175	1.1	5	5	-	KBJ
KBJ1001	100	10	175	1.1	5	5	-	KBJ
KBJ1002	200	10	175	1.1	5	5	-	KBJ
KBJ1004	400	10	175	1.1	5	5	-	KBJ
KBJ1006	600	10	175	1.1	5	5	-	KBJ
KBJ1008	800	10	175	1.1	5	5	-	KBJ
KBJ1010	1000	10	175	1.1	5	5	-	KBJ
KBL4005	50	4	80	1.1	4	5	-	KBL
KBL401	100	4	80	1.1	4	5	-	KBL
KBL402	200	4	80	1.1	4	5	-	KBL
KBL404	400	4	80	1.1	4	5	-	KBL
KBL406	600	4	80	1.1	4	5	-	KBL
KBL408	800	4	80	1.1	4	5	-	KBL
KBL410	1000	4	80	1.1	4	5	-	KBL
KBL6005	50	6	120	1.1	6	5	-	KBL
KBL601	100	6	120	1.1	6	5	-	KBL
KBL602	200	6	120	1.1	6	5	-	KBL
KBL604	400	6	120	1.1	6	5	-	KBL
KBL606	600	6	120	1.1	6	5	-	KBL
KBL608	800	6	120	1.1	6	5	-	KBL
KBL610	1000	6	120	1.1	6	5	-	KBL
GBJ10005	50	10	170	1.1	5	5	-	GBJ
GBJ1001	100	10	170	1.1	5	5	-	GBJ
GBJ1002	200	10	170	1.1	5	5	-	GBJ
GBJ1004	400	10	170	1.1	5	5	-	GBJ
GBJ1006	600	10	170	1.1	5	5	-	GBJ
GBJ1008	800	10	170	1.1	5	5	-	GBJ
GBJ1010	1000	10	170	1.1	5	5	-	GBJ
GBJ15005	50	15	240	1.1	7.5	5	-	GBJ
GBJ1501	100	15	240	1.1	7.5	5	-	GBJ
GBJ1502	200	15	240	1.1	7.5	5	-	GBJ
GBJ1504	400	15	240	1.1	7.5	5	-	GBJ
GBJ1506	600	15	240	1.1	7.5	5	-	GBJ
GBJ1508	800	15	240	1.1	7.5	5	-	GBJ
GBJ1510	1000	15	240	1.1	7.5	5	-	GBJ
GBJ20005	50	20	260	1.1	10	5	-	GBJ
GBJ2001	100	20	260	1.1	10	5	-	GBJ
GBJ2002	200	20	260	1.1	10	5	-	GBJ
GBJ2004	400	20	260	1.1	10	5	-	GBJ
GBJ2006	600	20	260	1.1	10	5	-	GBJ
GBJ2008	800	20	260	1.1	10	5	-	GBJ
GBJ2010	1000	20	260	1.1	10	5	-	GBJ
GBJ25005	50	25	350	1.1	12.5	5	-	GBJ
GBJ2501	100	25	350	1.1	12.5	5	-	GBJ
GBJ2502	200	25	350	1.1	12.5	5	-	GBJ
GBJ2504	400	25	350	1.1	12.5	5	-	GBJ
GBJ2506	600	25	350	1.1	12.5	5	-	GBJ
GBJ2508	800	25	350	1.1	12.5	5	-	GBJ
GBJ2510	1000	25	350	1.1	12.5	5	-	GBJ
GBJ30005	50	30	350	1.1	15	5	-	GBJ
GBJ3001	100	30	350	1.1	15	5	-	GBJ
GBJ3002	200	30	350	1.1	15	5	-	GBJ
GBJ3004	400	30	350	1.1	15	5	-	GBJ
GBJ3006	600	30	350	1.1	15	5	-	GBJ
GBJ3008	800	30	350	1.1	15	5	-	GBJ
GBJ3010	1000	30	350	1.1	15	5	-	GBJ
GBJ35005	50	35	400	1.1	17.5	5	-	GBJ
GBJ3501	100	35	400	1.1	17.5	5	-	GBJ
GBJ3502	200	35	400	1.1	17.5	5	-	GBJ
GBJ3504	400	35	400	1.1	17.5	5	-	GBJ
GBJ3506	600	35	400	1.1	17.5	5	-	GBJ
GBJ3508	800	35	400	1.1	17.5	5	-	GBJ
GBJ3510	1000	35	400	1.1	17.5	5	-	GBJ
GBJ50005	50	50	400	1.1	25	5	-	GBJ
GBJ5001	100	50	400	1.1	25	5	-	GBJ
GBJ5002	200	50	400	1.1	25	5	-	GBJ
GBJ5004	400	50	400	1.1	25	5	-	GBJ
GBJ5006	600	50	400	1.1	25	5	-	GBJ
GBJ5008	800	50	400	1.1	25	5	-	GBJ
GBJ5010	1000	50	400	1.1	25	5	-	GBJ

Hot Products

Products Applications
Factory Profile
Warehouse
Certifications
FAQ 1. What main products does we sell?
We sells full range of diodes and bridge rectifiers. Our advantages are most complete line of low voltage drop schottky diode, TVS, ESD, Mosfet, big Bridges, Transistor.
2.How long is a quote valid for?
All prices quoted are valid for 30 days from the date of quotation.
3.What is payment terms?
We prefer pay in advance via TT,western union and Paypal(for small amount only).
4. How long is the production lead time?
* Most items we have stock of complete items;
* Most items we have stock of chips, lead time 2~3 weeks;
* Partial items have not stock of chips, lead time 4~5 weeks.
* once order confirmed, we can check the exact lead time then
5. What is the freight charge when we buy diodes from JUXING?
As freight will varies according to the size and weight of the parts, different location of customers, we will quote ex-work, freight to collect and paid by customer courier account of DHL,UPS, FEDEX. Or we will check the shipping cost and add it to the total amount customer should pay.
6. May I have some samples for testing?
We offer free samples for our customers and they only need to pay the freight for samples.
7. How to assure worldwide customers receive components in good quality and condition?
1st, with advanced manufacturing technology ensure product reliability;
2nd Strict quality control system, ISO registered;
3rd, We will provide data sheet for all components, and we prefer customer trial test our parts, volumn orders to be placed after trial test pass;
4th, Factory would check product 100% before delivery, and international safety packaging will be applied to ensure parts arrive at customer in good condition.

---

>> J2 Bottle Blow Moulding Machine Adopts Advanced Microcomputer PLC Control System
>> Youpin EraClean Ultrasonic Cleaning Machine 45000Hz High Frequency Vibration Wash Cleaner Washing Jewelry Glasses Watch Machine
>> Model-160 Capacity 200kg/H Poultry Pellet Machine Birds Rabbits Cattle Cow Sheep Feed Pellet Machine
>> Chinese Carrot S Size in 5kg Carton
>> Agrieso 17.4 Ton Silo Chicken Feed Silo Equipped with Automatic Feeding Conveyor System
>> UTM420 Automatic Flatbed Pet laser label Die Cutting Machine, Flat bed hot stamping sticker punching press cutter
>> 16-Speed 25mm Heavy-Duty Floor Drill Press for Workshops
>> Five Axis Machining Center for Granite Marble Cutting Stone CNC Router
>> 5mm Pressure-relief 3D Spacer Fabric with high-elastic and Durable for Mattress Cover or Furnishing
>> Aelwen High Quality Auto Parts Car Ignition Switch Ignition Starter Switch with Key Fit for FIAT Citroen Iveco Peugeot Renault Toyota Ford VW Benz
>> Camping Heavy Duty Organizer Kids Toys Hanging Large Travel Reusable Clothing Storage Bag
>> New Crop Garlic Clove Exporting to Australia
>> Silicone Rubber O-Ring/ Parts Making Machinery
>> Effective Hay Crusher Chopper for Farm
>> Acrel BA series din rail AC current transducer through core
>> Heavy Duty Steel Selective Pallet Rack for Industrial Warehouse Storage Solutions
>> Spring Tine Cultivator Farm Machinery Tiller Cultivator
>> Custom Durable FRP Fiberglass Pultrusion Profiles
>> BNKAS-1124 kjeldahl nitrogen analyzer distillation apparatus Kjeldahl Apparatus
>> Hydraulic Pressure Regulator G-Hnov Kawasaki Series K3V112 Hydraulic Control Dh220-5 Dh225-7
