Spring Tine Cultivator Farm Machinery Tiller Cultivator

Product Description

Product Description

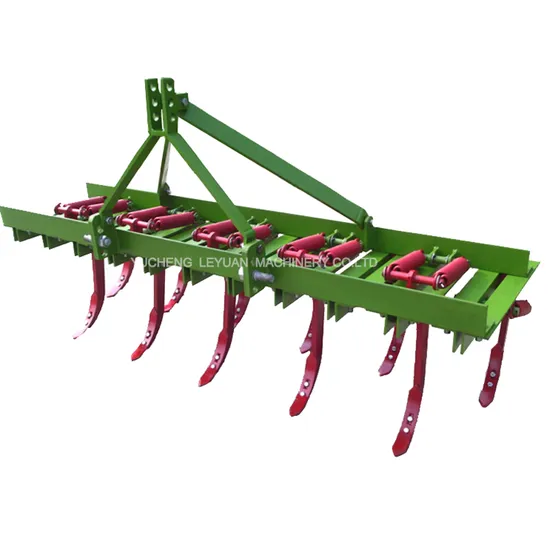

The 3ZT series of spring cultivator is developed from our company according to the demand of foreign market. This machine adopts double-spring tension device which enables the tines during operation to bounce when meet with obstacles and return to normal working quickly after over them,by which the tines are protected .It has advantages of row spacing to be conveniently adjusted and the depth to be easily controlled. and the machine is suitable to cultivate and loosen soil in the corn, cotton and beans field.
Product Parameters

Model	3ZT-1.2	3ZT-1.4	3ZT-1.8	3ZT-2.2	3ZT-2.5	3ZT-3.0
Width of cut (mm)	1200	1400	1800	2200	2500	3000
Depth of cut (mm)	100-250
No of tines	5	7	9	11	13	15
Weight (kg)	260	320	400	490	550	640
Tractor power (hp)	25	30-40	40-50	50-70	70-80	80-100
Mounted	l		ll

Detailed Photos
Packaging & Shipping

---
