High Density Warehouse Automatic Storage Shelf Rack (Asrs Racking System) 5%off

Product Description

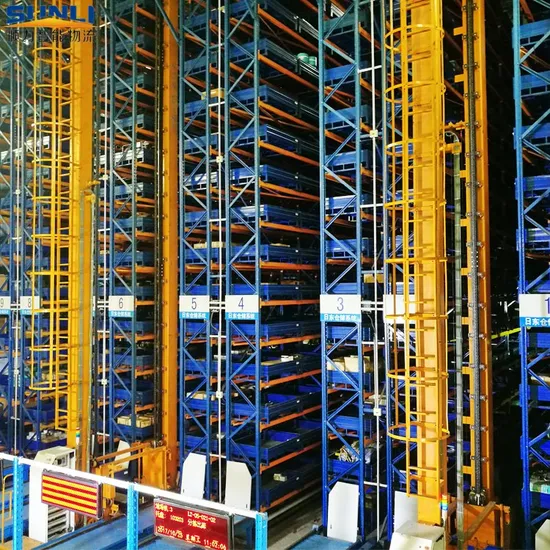

High Density Warehouse Automatic Storage System with Shelving Rack(AS/RS)
NO.1: Rack Part for AS/RS/ssytem:
1) AS/RS System are usually equipped with standard pallet rack and drive-in pallet rack or medium shelf rack , they are composite structure.
2) Steel panels and wooden panels are available for storage.
Conveyors will do the loading and unloading job under the instruction of the computer.
3) AS/RS System is mainly used in the food, electronic, mechanical and garmament industry.


No.2: Stacker in Automated or Retrieval Warehouse Racking Sytem(AS/RS)
1) Double Row upright,, steady and reliable, vector frequency conversion drive and encoder-positioned control,
mechanical and electronic safety devices to ensure application of the system; all the way tracing technology by information transferring;
2)Electric components(Imported)
touching screen interface for making manual, semiautomatic, automatic and linkage control come true;
Easily link with warehouse management system.

Model

Loading capacity	Height	Travel Speed
0.1T/100KG	5-30M (export 11m)	165M/MIN
0.5T/500KG	5-30M (export 11m)	160M/MIN
1T/1000KG	5-30M (export 11m)	165M/MIN
2T/2000KG	5-30M (export 11m)	120M/MIN
3T/3000KG	5-30M (export 11m)	105M/MIN

No.3: Conveying system in AS/RS Warehouse Racking Sytem
Conveying system is usually equipped in the front or back of warehouse for conveying goods here and there,
bridging the procedures done by forklifts and stackers by using rolling conveyor or chain conveyor and combining with lifts,
rotating devices and other equipments.

No.4: Controlling system
Communicating with WMS and ECS through OPC agreement, PROFIBUS bus network, set up by SIEMENS S7-300 controller can operate all conveyors offline,
doing conveying of goods automatically.

No.5: WMS System
Hardwares of WMS System: star network structure, network sever, RF server, computers for management and monitor, RF base station and RF terminal for in/out warehouse of goods.

No.6: Softwares of WMS System:
Operating system: WINDOW 2000X SEVER
Data-base: MS SQL SEVER 2000X
Warehouse management software: WMS
Equipment controlling software: ECS
Bar code management software: RFS

No.7 : Other related equipment
Other related equipment include switching cart, rail cart, O/R table, automatic guided vehicle, auto-picking system, electronic label, pallet lift and so on.

No.8: Others
Design: professional design for your requirment:include choose the correct type for you,CAD drawing
Direct Manufacture price, according to your quantity, payment
Package standard: export package
Payment 30%prepaid ; T/T,L/C at sight
Trade Terms: FOB,CNF,CIF
Shippment: FOB Shenzhen

Quick Delivery. Within 18-25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.
Certification CE:if you need,can provide for you.

Important information for quick quotation:
1. Racking's DxWxH
2. Loading capacity per level
3. Quantity of levels
4. The size of warehouse

---
