P6 Outdoor Energy -Saving Advertising Advertising Signs Solar Battery Mobile Signs LED Screen Display

Product Description

We are a professional manufacturer of LED display. We have excellent R&D department,independent design ability.
Our main products include led single color display, indoor full color led display screen, led display, outdoor full-color led to wireless car use screen, etc. Can be used for shopping, banking, bus station, railway stations, urban centers, airports, schools, factories, buses, taxis,creative/flexible screen and so on.
Advertising LED displays, Stadium perimeter LED screen, Mobile led display for mobile media, shopping mall LED billboard for logo showing, bank & stock exchange LED message signs for rates showing, train & bus station, airport, telecommunication LED video wall, stage performances, conference room, etc.
This energy-saving outdoor display get the features and advantages as below,

Technical Details
Model	P4.16	P5	P6.25	P8.33	P10
LED Lamp Type	SMD1921	SMD1921	SMD2727	SMD2727	SMD2727
Pixel Density(dots/sqm)	57600	40000	25600	14400	10000
Module Pixel	96*72	80*60	64*48	48*36	40*30
Module Size	400*300	400*300	400*300	400*300	400*300
Cabinet Size(mm)	800*900/ 800*1200	800*900/ 800*1200	800*900/ 800*1200	800*900/ 800*1200	800*900/ 800*1200
Module Quantities(W×H)	2*3/2*4	2*3/2*4	2*3/2*4	2*3/2*4	2*3/2*4
Resolution(W×H)	192*216/192*288	160*180/160*240	128*144/128*192	96*108/96*144	80*90/80*120
Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Weight(kg)	22.4/28	22.4/28	22.4/28	22.4/28	22.4/28
Cabinet Flatness Difference (mm)	≤0.01	≤0.01	≤0.01	≤0.01	≤0.01
Brightness(nits)	6500	6500	6500	6500	6500
Color Temperature(K)	3200-9300 adjustable	3200-9300 adjustable	3200-9300 adjustable	3200-9300 adjustable	3200-9300 adjustable
Grayscale	65536	65536	65536	65536	65536
Viewing Angle	160°/ 160°	160°/ 160°	160°/ 160°	160°/ 160°	160°/ 160°
(Horizontally/vertically)
Contrast Rate	5000:1	5000:1	5000:1	5000:1	5000:1
Frame Frequancy(Hz)	50/60	50/60	50/60	50/60	50/60
Drive Mode	Constant current drive,1/6 scan mode	Constant current drive,1/6 scan mode	Constant current drive,1/6 scan mode	Constant current drive,1/3 scan mode	Constant current drive,1/2 scan mode
Refresh Rate	3840	3840	3840	3840	3840
Single-point brightness and color calibration	Yes	Yes	Yes	Yes	Yes
Maintenance	Front /Rear	Front/Rear	Front/Rear	Front/Rear	Front/Rear
Brightness/color uniformity	≥99%	≥99%	≥99%	≥99%	≥99%
Maintenance	Front /Rear	Front/Rear	Front/Rear	Front/Rear	Front/Rear

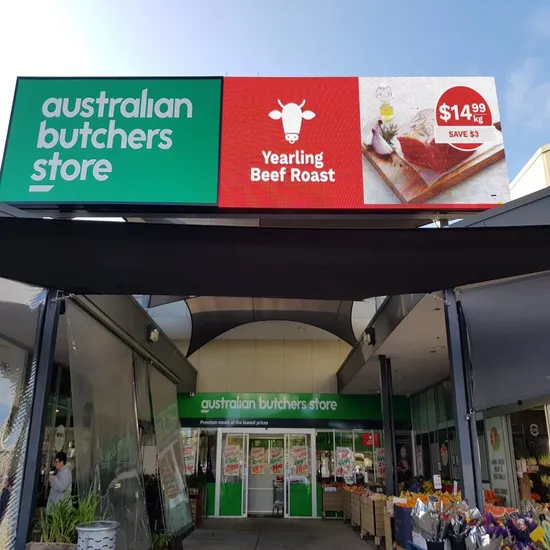

Project cases
Started in 2013, Shenzhen XD Vision is a professional manufacturer of LED display, with excellent R&D department, independent design ability. XD VISION is fully capable to provide creative and custom-made LED models beside of standard LED screens.
XD Vision contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts are running efficiently and smoothly. Moreover, delivering qualified product and offering timely pre-after service are also assured by XD VISION team.
XD Vision products include led single color display, indoor and outdoor full color led display screen, advertising poster led display, outdoor full-color led for wireless car use screen, etc. These LED display can be used for shopping mall, banking, bus station, railway stations, urban centers, airports, schools, factories, buses, taxis, monitor center, museums, theaters, cinema, sports field, so on. The types of LED display including Advertising LED displays, Stadium perimeter LED screen, Mobile led display for mobile media, shopping mall LED billboard for logo showing, bank & stock exchange LED message signs for rates showing, train & bus station, airport, telecommunication LED video wall, stage performances, conference room, etc.
XD VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by ROHS, CCC, CE, FCC, CNAS, etc. With high quality, in the past years of development, XD VISION continuous growth, XD has established the Australia Branch and LED displays have been sold to over 120+ countries all over the world.
AUSTRALIA BRANCH
Address: F3, 13-15 Kevlar Close, Braeside VIC 3195, Australia
Q&A
Q1. Could I get a sample order of led display?
A: Yes, sample order is available to check the quality.
Q2: Could we print our own logo on led display products?
A: Of course. You can send us your logo design and info to confirm before production.
Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.
Q4: Do you provide technical training (installation training and user training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service for your clientsQ5: Do you accpet other trade terms, like CIF, CFA, etc.?
A: Yes, please send us your destination address and way of shippment, we can check for you the cost for insurance and freight.
Q6: Do you custom design for different shapes?
A: Yes, we can design and manufacturer custom design LED display according to requirements.
Factory and workshop
Certificates
Delivery

---
