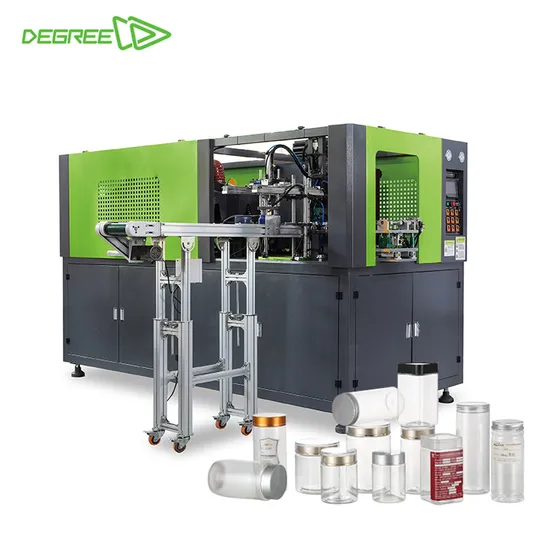

Cost-Effective Fully Automatic Machine for Pet Jar Bottle Manufacturing

Product Description

Cost-Effective Fully Automatic Machine for Pet Jar Bottle Manufacturing Product Description
What is Blow Molding Machine?
Blow Molding Machine is one kind of two step stretch type bottle making plant.
Blow Molding Machine is suitable to produce plastic bottles based on PET raw material.
Blow Molding Machine is widely used to produce carbonated soft drinks
bottles, mineral water bottles, cooking oil bottles, medicine bottles, cosmetic bottles, wide mouth Jars and hot filling juice bottles etc

Detailed Photos
Product Parameters

MODEL	DEG-A2-120MM
OUTPUT	Based on sample	1200PCS/H
CONTAINER SPEC.	Bottle body diameter	40mm-200mm
	Body height	100mm-360mm
	Neck size	50mm-120mm
MOLD	Cavities	2cavity
MACHINE POWER	Power Voltage	380v 50HZ
	Install power	45kw
	Actual power	25kw
AIR SUPPLY	Low air compressor	2.0m3/min 1.0MPa
	High air compressor	2.4m3/min 3.0MPa
	Air dryer	2.0m3/min 3.0MPa
COOLING WATER	Cooling water capacity	30L/min
MAIN MACHINE DIM.	L*W*H	3000*1900*2000mm
	Weight	3000kg

Certifications
Packaging & Shipping
Company Profile
FAQ
Q1 :What kinds of product you supply?
A1: Blow Molding Machine, Extrusion Molding Machine ,Preform Mould ,Cap Mould, Blow Mould,Filling Machine, Packaging Machine, Plastic Products, etc
Q2: How to tell your enquiry ?
A3: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry.
Q3: How to choose suitable machine?
A3: Tell us your requirement, and we will advise you.
Q4: Do you have technical support after we purchased your machine?
A4: - We will provide video technical support,online support.
- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.

---
