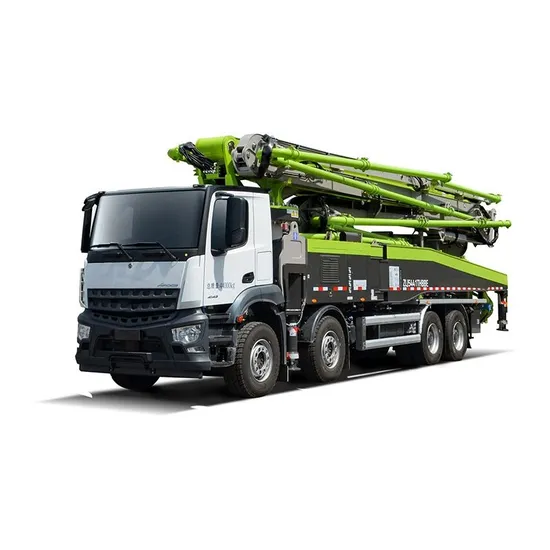

China EXW Price Zoomlion 52m Concrete Pump Truck 3-Axles Zlj5441thbke Chassis 52X-6rz

Product Description

China EXW Price Zoomlion 52m Concrete Pump Truck 3-Axles Zlj5441thbke Chassis 52X-6rz


Advavtages:
• Compact in design, 52m pump mounted on a 3-axle truck.
• Active boom vibration control technology(ABC): All-position active vibration reduction technology of boom, reducing vibration by 50%. More stable boom, more safety.

• Boom intelligent damping technology: The soft control of booms in starting, slewing and stopping reduces the impacting vibration of booms and therefore makes the vehicle operate more stably, reliably and safely.

• Accurate pumping control technology(APC): Great leap of pumping accuracy and adaptability, improving pump efficiency.

• Adaptive concrete material pumping technology: Improve pumping control system for poor concrete with segregation and big viscosity, and auto-adaptive pumping mode, reducing the block rate by more than 50%.

Dual-pump and dual-loop hydraulic system: Less hydraulic impact, High efficiency, Low failure rate.Three-stage fault diagnosis: boot self-check, process self-chec and shutdown detection is adopted to realize the overall control of the product's health condition.Long life wearing parts: Reduce working cost remarkably. Continuously improve wearing part's life by using new material, new process and new designing.
Product Parameters

Model	Unit		52X-6RZ
Pump Unit	Max. Theor. output	m3/h	180
	Max. Theor. concrete output Pressure	MPa	9
	Rated working pressure	MPa	35
	Pumping frequency	min-1	27
	Hopper capacity	L	600
	Filling height	mm	1540
	Hydraulic system type		closed loop
	Distribution valve		S valve
	Oil cylinder dia.×stroke	mm	φ130×2100
	Concrete cylinder dia.×stroke	mm	φ230×2100
	Hydraulic oil cooling		Wind cooling
	Recommended concrete slump	cm	12~23
	Max. aggregate dimension	mm	40
Boom Section	Structure type		52X-6RZ
	Placing depth	m	52
	Max. horizontal distance	m	48
	Max. placing depth	m	37.6
	Slewing angle		±270°
	Boom number		6
	The length of boom section	mm	10410/9120/8690/9680/6600/3500
	Sections folding angle		90°/180°/180°/240°/195°/210°
	Pipe diameter	mm	125
	End hose length	mm	3000
	Min. height of opening placing boom	mm	10900
	Outriggers span (front×rear×side)	mm	9300×11975×10422

Detailed Photos
