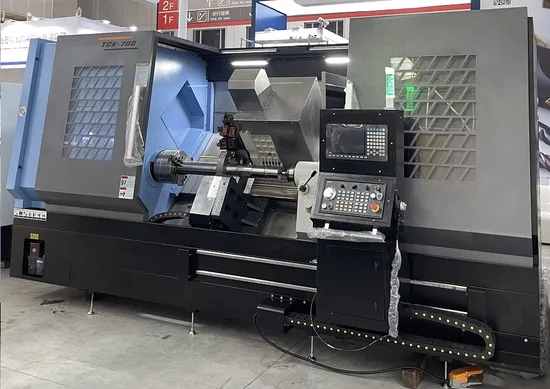

| PROJECT | UNIT | TCK700DY |
| THE SCOPE OF WORK |
| Maximum swing diameter on the bed | mm | 760 |
| Maximum swing diameter of carriage | mm | 500 |
| Turning length | mm | 1000 |
| MECHANICAL SPINDLE |
| Spindle speed | rpm | 2000 |
| Main motor power | kw | 18.5-22KW |
| Maximum output torque | NM | 708 |
| Spindle nose specifification | / | A2-11 |
| Spindle diameter | mm | 105 |
| Spindle through hole diameter | mm | 92 |
| Chuck size | inch | 12 |
| Turret |
| Type | | BMT65-12T |
| Specifification of external tool holder | mm | 32*32 |
| Maximum boring bar diameter | mm | 50 |
| Time for 30°rotate and Locking | s | 0.15-0.2 |
| Positioning accuracy | '' | ±2 |
| Driven tool speed of rotation | rpm | 6000 |
| Driven tool power | KW | 5.5 |
| TAILSTOCK |
| Tailstock type | / | Hydraulic programmable |
| Tailstock sleeve diameter | mm | Φ150 |
| Tailstock sleeve travel | mm | 200 |
| Taper of taper hole of tailstock sleeve | / | MT5 Internal rotation |
| FEED AXIS |
| X axis travel | mm | 350+20 |
| Y axis travel | mm | ±75 |
| Z axis travel | mm | 1100/1600/2100/3100/4100 |
| Fast moving speed X/Z | M/min | 16/20 |
| Servo motor torque X/Y/Z | KW | 3/3(4) |
| Positioning accuracy X/Z | | 0.008/0.011 |
| Repeat positioning accuracy X/Z | | 0.004/0.005 |
| Total electrical capacity | KVA | 30/35 |
| Processing length Machine weight kg Machine size mm |
| 1000mm | 7300/8000 | 4500X2300X2400mm |
| 1500mm | 8800/9800 | 6200X2300X2400mm |
| 2000mm | 10300/11500 | 6700X2300X2400mm |
| 3000mm | 12500/14300 | 7700X2300X2400mm |
| 4000mm | 14500/15500 | 8700X2300X2400mm |
