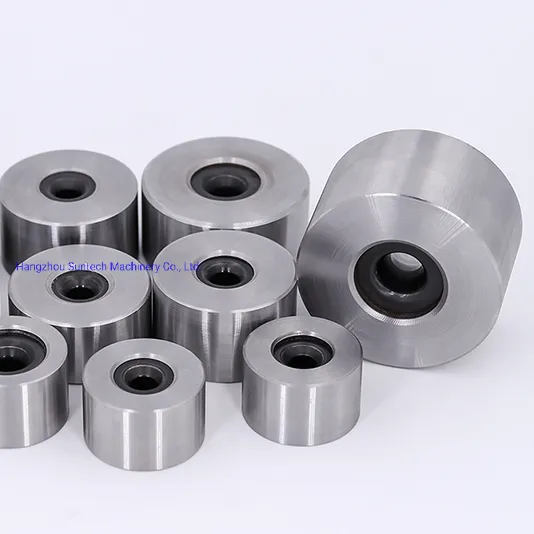

Tungsten Carbide Wire Drawing Die Carbide Inserts with Steel Case
US$70.00
10 Pieces
(MOQ)
Basic Info.
Shaping Mode
Grinding
Hole Type
Round Mould
Cavity
Single-cavity
Surface Treatment
Polish
Application
Hardware, Commodity
Certification
ISO, CE
Warranty
1 Year
Customized
Customized
Process
Sintering
Case
40X25mm
Diameter
2mm
Package
Wooden Case
Transport Package
Wooden Box
Specification
40*25 mm
Trademark
SUNTECHMACH
Origin
China
Product Description
1. Applycation: used in wire drawing machine for drawing wire 2. Material: Steel 3. Coating: CVD nano diamondd coating 4. Precision: 4.1 Die core: Rough drawing (ΦΦ2.2mm-Φ5.5mm): -0.02mm-+0.01mm (the last one is ±0.01mm) Fine drawing (Φ0.8mm-Φ2.2mm): ±0.01mm 4.2 Die case: -0.05mm 4.3 Roundness error: ≤0.005 4.4 Compression angle: Φ1.2mm or less: 10°±2° Φ1.2mm-Φ2.0mm: 12°±2° Φ2.0mm-Φ5.0mm: 14°±2° PCD dies are ideal for long production runs and for drawing abrasive wire materials as they outlast TC, SSCD and ND dies. Polycrystalline diamond dies are available in various grain sizes, both in supported and unsupported configurations. PCD dies provide uniform hardness and extended wear resistance in all directions. Polycrystalline diamond (PCD) is a kind of artificially sintered diamond,which can be used in all wet drawing and dry drawing processes,polycrystalline diamond high temperature pressing and alloy bond sintering.There are three types of polycrystalline diamond embryo:non reinforced ring type,reinforced ring type and heat stable setting type. Polycrystalline diamond wire drawing die is the longest die life of all materials,which can provide the highest production efficiency and reduce downtime.It is suitable for all applications from large drawing to ultra-fine drawing,with predictable wire surface quality.
