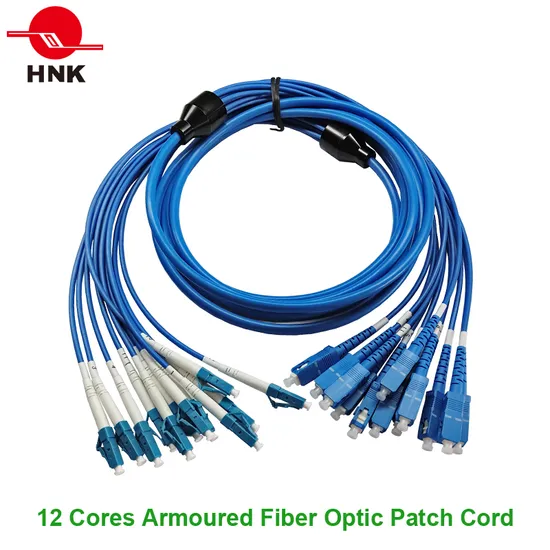

Indoor Sc/LC/FC/St/E2000/Mu Armoured Fiber Optic Armored Patch Cord

Product Description

Armoured Fiber Optic Patch Cord are manufactured so as to withstand side pressure and repeated bending and are
used in outdoor applications in customer premises, central offices and in harsh environments. Armoured patch cords
are constructed with a stainless steel tube over a standard patch Cord surrounded by a stainless steel mesh with and
outer jacket. The flexible metal tube limits the bending radius, preventing the optical fiber from breaking. This ensures
a safe and durable optical fiber network system. Armoured patch Cords use a Optical Branching Device to protect the
separated tight buffer fibers(for example 12 cores).
Standards Compliance
. IEC 874-14, TIA/EIA-568-B.3 and ISO/IEC 11801, IEC-61754-7, TIA-604-5
. RoHS, REACH & SvHC Compliant
Features
. Available in all fiber types
. Available in standard and custom lengths
. Built with Stainless Steel tube, Suitable for different harsh environments application
. Together with custom connectors, the cable can be both water proof and gas proof and can withstand high temperatures.
. Layouts can be wired much the same way as ordinary electric cable installations.
Cable Specification

Item	Simplex	Duplex	4 cores	6 cores	12 cores
Tight Buffer OD (mm)	0.9 ± 0.05	0.6 ± 0.05
Outer diameter (mm)	2.8 ± 0.1	3.0 ± 0.1	3.9 ± 0.1	4.4 ± 0.1	5.9 ± 0.1
Outer jacket	PVC ,LSZH,PE
Standard color	Blue or Yellow (Singlemode),Grey (Multimode). other colours available upon request
Cable weight (kg/km )	12	14	30	35	40
Operating temperature	-40ºC~+75ºC
Storage temperature	-40ºC~+80ºC
Minimal Bending radius	≥30D

Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number: APC-AA-BB-CDFGCL
Ordering Guide

AA	BB	C	D	E	F	G	CL
Connector Type	Connector Type	Fiber Type	Fiber Count	Boot fit for cable diameter	Length	Jacket Materia	Jacket Color(CL)
FP,SP, SA,LP	FP,SP, SA,LP	OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D G657A=9/125 G657A	SX=Simplex DX=Duplex 4F=4 cores 6F=6 cores 12F=12 cores	09=0.9mm 16=1.6mm 20=2.0mm 30=3.0mm	0015 =1.5M 0200 =20M	1=PVC 2=LSZH 3=PE	As noted in Color code chart

Connector Type Code

Code	Connector	Code	Connector	Code	Connector	Code	Connector
FP	FC/PC	FA	FC/APC	LP	LC/PC	LA	LC/APC
SP	SC/PC	SA	SC/APC	TP	ST/PC	TA	ST/APC
MU	MU	DN	DIN	MT	MTRJ	E2	E2000

Color Code
Ordering Sample

Part Number	Description
APC-LP-LP-G657A6F01001BL	LC/PC-LC/PC Armoured Fiber Optic Patch Cord, Singlemode G657A, 6 Cores, PVC, Blue,10M.

---
