IEC 60884 Testing Equipment Insulating Sleeves of Plug Pins Abrasion Test Apparatus

Product Description

IEC 60884 Testing Equipment Insulating Sleeves Of Plug Pins Abrasion Test Apparatus

Standard of Apparatus for abrasion test on insulating sleeves of plug pins:
IEC 60884-1: 2022 Plugs and socket-outlets for household and similar purposes -Part 1: General requirements clause 24.8 and figure 31;

The Apparatus for abrasion test on insulating sleeves of plug is designed to evaluate the wear resistance and reliability of the insulation sheath on plugs. It meets the standard requirements of IEC 60884-1 Figure 28 and BS 1363 Figure 9. The tester can simulate the wear conditions that plugs may encounter during use through various test conditions and parameters.

Application of IEC 60884 Testing Equipment:
The plug insulation sheath wear tester is mainly used to test the wear resistance of the insulation sheath of plugs. It can simulate the wear conditions that plugs may encounter during use, such as abrasion, scratching, and other wearing processes. By testing the insulation sheath under different conditions and parameters, the wear resistance and reliability of the insulation sheath can be evaluated, ensuring the safety and durability of the plugs in use.

Test sample of Plug Socket Tester:
Insulation Sleeve of plug pins.

Product Parameters
Parameters of IEC 60884 Testing Equipment:

Parameter Name	Parameter Data
Power supply	AC220V, 50Hz
Station	Single station
Test time	1-999999, preset
Rate of abrasion	30±1 movements per minute
Load	4-0.1N
Working stroke	9mm

Detailed Photos

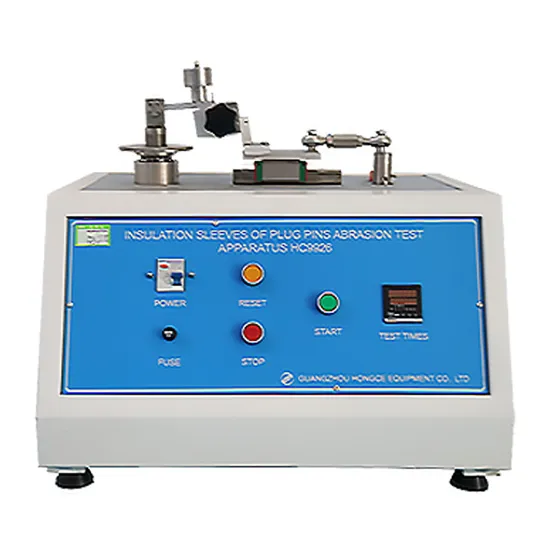

IEC 60884 Testing Equipment picture:
