Used Tower Crane7025-12e

Product Description

Related tower crane model specifications:

Model	Max load	Jib length	Free standing height	Tip load	Mast section size
QTZ50(4810)	4t	48m	29m	1t	1.5×1.5×2.2m
QTZ50(5008)	4t	50m	29m	0.8t	1.5×1.5×2.2m
QTZ63(5013)	5t	50m	38m	1.3t	1.5×1.5×2.5m
	5t	50m	38m	1.3t	1.6×1.6×2.5m
	5t	50m	42.5m	1.3t	1.6×1.6×2.8m
	6t	50m	40m	1.3t	1.6×1.6×2.5m
	6t	50m	42m	1.3t	1.6×1.6×2.8m
	5t	50m	36.5m	1.3t	1.2×1.2×3.0m
	6t	50m	44m	1.3t	1.2×1.2×3.0m
QTZ80(5610)	6t	56m	42m	1.0t	1.6×1.6×2.8m
	6t	56m	44m	1.0t	1.2×1.2×3.0m
QTZ80(5612)	6t	56m	40m	1.2t	1.6×1.6×2.8m
QTZ80(5613)	6t	56m	42m	1.3t	1.6×1.6×2.8m
	6t	56m	44m	1.3t	1.2×1.2×3.0m
QTZ80(6010)	6t	60m	40m	1.0t	1.6×1.6×2.8m
	6t	60m	45m	1.0t	1.8×1.8×2.8m
	6t	60m	44m	1.0t	1.2×1.2×3.0m
QTZ80(6012)	6t	60m	40m	1.2t	1.6×1.6×2.8m
	6t	60m	45m	1.2t	1.8×1.8×2.8m
	6t	60m	44m	1.2t	1.2×1.2×3.0m
QTZ100(6013)	6t	60m	40m	1.3t	1.6×1.6×2.8m
	8t	60m	45m	1.3t	1.8×1.8×2.8m
	8t	60m	44m	1.3t	1.2×1.2×3.0m
QTZ125(6513)	6t	65m	45m	1.3t	1.8×1.8×2.8m
	8t	65m	45m	1.3t	1.8×1.8×2.8m
QTZ125(6015)	8t	60m	45m	1.5t	2.0×2.0×3.0m
	10t	60m	45m	1.5t	1.8×1.8×2.8m
	10t	60m	44m	1.5t	1.6×1.6×3.0m
	10t	60m	60m	1.5t	2.0×2.0×3.0m
QTZ160(6024)	10t	60m	59.7m	2.4t	2.0×2.0×3.0m
	10t	60m	64.7m	2.4t	2.0×2.0×3.0m
QTZ160(6516)	8t	65m	50m	1.6t	1.6×1.6×3.0m
	8t	65m	50m	1.6t	1.8×1.8×2.8m
QTZ200(6520)	10t	65m	59.7m	2.0t	2.0×2.0×3.0m
	10t	65m	64.7m	2.0t	2.0×2.0×3.0m
	10t	65m	53.5m	2.0t	2.0×2.0×3.0m
QTZ250(7021)	12t	70m	59.7m	2.1t	2.0×2.0×3.0m
QTZ250(7025)	12t	70m	59.7m	2.5t	2.0×2.0×3.0m
QTZ250(7032)	12t	70m	52.5m	3.2t	2.0×2.0×3.0m
	12t	70m	57.5m	3.2t	2.0×2.0×3.0m
	12t	70m	38.8m	3.2t	2.0×2.0×3.0m
QTZ250(7027)	16t	70m	52.5m	2.7t	2.0×2.0×3.0m
	16t	70m	38.8m	2.7t	2.0×2.0×3.0m
QTZ315(7530)	16t	75m	52.5m	3.0t	2.0×2.0×3.0m
QTZ500(8522)	25t	85m	73m	2.2t	2.5×2.5×5.95m

Certifications

Packaging & Shipping

Packaging Details: 40 HC containers; high quality Wodden cage for electrical parts Delivery
Delivery Detail: 25-30 days after received the deposit

Our Advantages

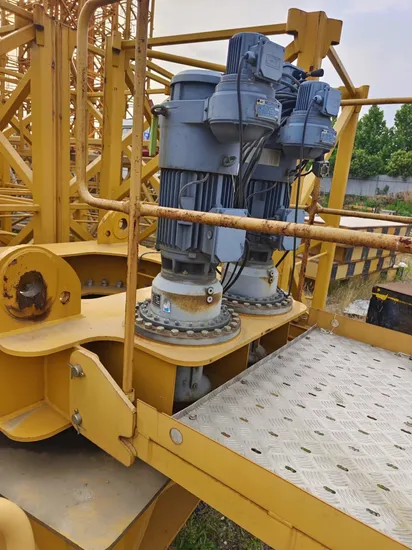

Hoisting mechanism using high-power motor, lifting power stronger, more stable operation; Rotating mechanism block torque is relatively large, relative to other equivalent models, the torque is more powerful. Machine modeling and painting for specialized industrial design, beautiful appearance coordination.
Performance Characteristics:
1. Stronger and better lifting performance.
2. Self-pressure counter weight technology, safe and reliable.
3. Aviation plugs, prevent misconnection; high system reliability and low maintenance cost.
4. Compact design of whole machine, transfer operation is convenient and efficient.
After Sales Service
1. We are very glad that customer give us some suggestion for price and products.2. We supply you installation video to assist you to install the crane to help you save the installation cost3. Send free spare parts within warranty time 4. Provide Installation manual and operation manual ,electric drawing5. 24*7 hours on line service
FAQ
Tower Cranes are available in hammerhead, flat top and luffing jib varieties with different hook heights, jib lengths and capacities.Unsure which crane to choose? Tell us your requirements and we will assist you in selecting the most appropriate tower crane according to your construction site needs.
1.what is the tower crane height you need?
2.what is the Jib Length?
3.what is the Tip Load?
4.what is the Max.Lifting Load?
5.what is the Power supply?
6.What is the quantity you need?
7.FOB Qingdao price or CIF price, if you need CIF price, please tell me your destination port.
Please reply us the above the questions, so we can give you a best price as for your requirements, Thank you!

---
