CATV Signal Level Meter Ht828b TV Signal Level Meter

Product Description

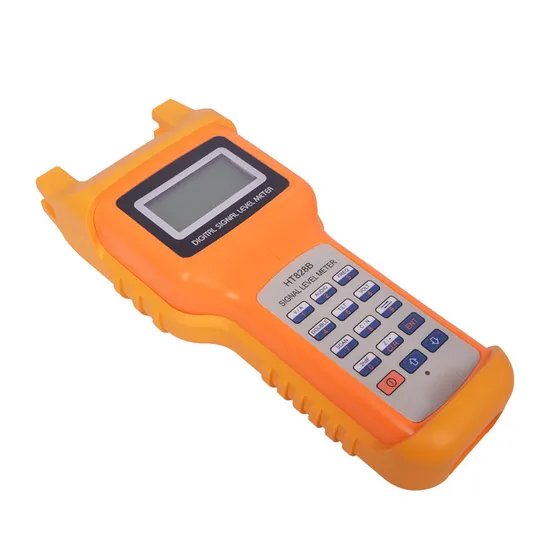

HT828B TV Signal Level Meter
Summay The Low price rf signal level meter/Catv signal level meter , HT828B is able to measure EQ, C/N, V/A and trunk volt in the CATV analog system, the number keys is designed to direct input frequency so that work would be easier. It can measure 2 channels at the same time. Working Frequency range: 46~870Mhz, level range: 30dBμV - 115dBμV. Input impedance 75ohm (BNC or F type connector). AC and DC NI-MH-rechargeable battery power.
Characteristic Frequency and level: Frequency range: 46~870Mhz (5~860MHZ optional) Resolution Bandwidth: 280KHz ± 50KHz Channels: all user channels Level ranger: 30dBμV - 115dBμV Accuracy: ±1.5dBuV(under room temperature) ±2.5dBuV(- l0 - +50°C) Input impedance: 75Ω(BNC or F connector) Wave detection: peak value Channels: Voltage: Voltage range: 0~100VAC Accuracy: ±1.5V Resolution: 0.1V C/N Level range: 80dBuV 105dBuV Dimension: 215mm x 95mm X 47mm Weight: 550g (without charger) Working Temperature: -10°C -- + 40°C Display LCD: STN LCD with back light Power DC Supply: DC 7.2V/1.6Ah rechargeable battery AC Supply: AC 220V/50Hz±10% Battery working hours:longer than 4.5 hours at continuous working mode Recharging hours: 12 -- 14 hours.
Accessories Battery Charger: charger 1pc RF Input connector: F type 2pcs User Manual :1 copy ·Workshop

---
