Advanced Precision CNC Grinding Sharpening Machines for Circular Saw Blade Tooth Side Ns700

Product Description

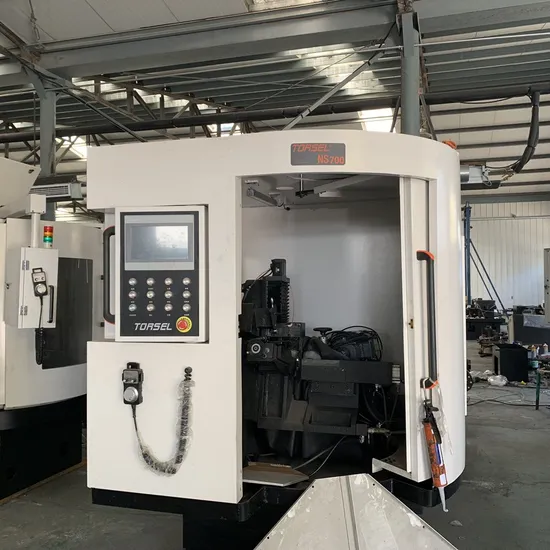

2021 Precision CNC Tungsten Carbide Circular Saw Blade Tooth Side Grinding Sharpening Machine NS700

Saw blade diameter	110~710mm
Body thickness	0.5~8mm
Side relief	-5°~ 5°
Side angle	0°~ 5°
Hook angle	-5°~28°
Bore diameter	12~120mm
Pitch	2~65mm
Tip length	1~15mm
Grinding accuracy	<0.015mm
Wheel diameter	80~125mm*32mm
Wheel speed	3500~5000r/min
Grinding speed	4~20s/tip
Power	4KW
Dimension	1850 *1550 *1920mm
Weight	1900KG

♦ High grinding accuracy.
The machine is controlled by seven-axis servo motor, and the industry top linear guide rail is selected. Therefore, the overall rigidity and repetition accuracy are well guaranteed, thus improving the accuracy and roughness of the saw blade.
♦ Computerized Numerical Control System and Touch Screen
This machine adopts the top PLC in the industry, which can reasonably design the operation interface and tooth shape. Customers can design the ideal tooth shape according to their own actual requirements, which can be processed at one time; the operation interface is touch screen operation, whether angle adjustment or feed setting, or tooth shape selection are all operated in the touch screen, thus simplifying the operation steps and improving the working efficiency. It has the function of automatic compensation and tooth skipping, which can realize automatic compensation and tooth skipping, so that customers don't have to worry about unequal pitch and grinding wheel loss;
♦ Save human resources and reduce labor costs.
After debugging, the machine can automatically load and unload saw blade with robot arm, and one person can operate 6-20 sets at the same time. In high efficiency mode, it can achieve 5-20s/T grinding speed (grinding speed and feed finger speed can be set according to customer requirements).
♦ The electrical components and operating system of the product are all top components in the industry, so as to ensure the stability of the machine operation.
1. Besides NS700, do you have other circular saw blade grinding/sharpening machines?
---Yes, sure. We mainly have four series of products:
1) Economical CNC tungsten carbide tipped circular saw blade grinding machine;
2) Precision CNC tungsten carbide tipped circular saw blade grinding machine;
3)Cold circular saw blade cermat tipped grinding machine;
4)Robot CNC automatic tungsten carbide tipped circular saw blade grinding machine.
In addition to these CNC grinding machines, we also have some simple end jump detector, radius jump detector, and angle detector.
2.Is the company's technology for producing saw blade grinding machines mature?
---Sure,our company have more than 120 technicians, and they have more than 20 years working experiences.
3.What is the grinding accuracy of the grinding machine?
---The accuracy of the grinding machine is between 0.01-0.03mm.
4. Which tooth surfaces of the saw blade can your grinding machine grind?
---It can grind any tooth surface, and you can choose a grinding machine to grind the tooth top, tooth face or side surface according to your needs.
5. Are you a manufacturer or a trading company?
---We are professional saw blade grinding machine manufacturer. We have more than 120 technicians dedicated to the design, development and production of saw blade grinding machines. And there is an independent sales department and after-sales department to provide you with services.
6. How can I select a suitable grinding machine?
---You can tell us your requirements of saw blade grinding machine, and other parameters of your saw blades, we will give you professional suggestion.
7. Can I contact you if I have any questions?
---Sure, we will serve you wholeheartedly, please feel free to contact us if you have any questions.
8. What are the advantages of our circular saw blade sharpening machine?
1) long service life: using quality cast iron base treated by high temperature tempering and vibration aging. no deformation and low vibration.
2) easy operation: CNC with friendly interface panel, all parameters can be set directly and stored directly. A machine can store up to 100 sets of data.
3) high efficiency: adjustable grinding speed, one person can operate several machines at the same time.
4) high accuracy: use quality machine components to realize high accuracy.
5) competitive price: price is very competitive for such good quality

---
