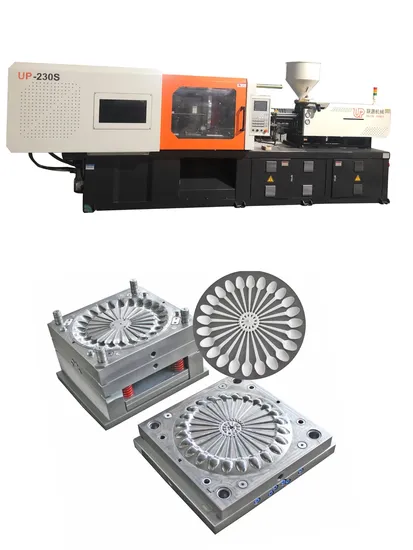

Plastic Injection Molding Machine for Making Colorful Disposable Soup Spoon Products

Product Description

Servo type Injection Molding Machine MANUFACURER IN CHINA

From 70T to 3000T. The energy injection molding machine is equipped with hydraulic, electrical and control systems of international famous brands, introduces European style design concepts, and provides customers with first-class products and services in Chinese Mainland through strict testing, assembly and commissioning.Servo type Injection Molding MachineSummary of advantages of servo injection molding machines:
1. High energy efficiency: Servo energy-saving technology is highly optimized, with high production efficiency and low unit energy consumption of products.servo type injection molding machine.
2. High precision: The highly optimized mechanical structure and Austrian Koch high-performance controller effectively improve the service life and injection accuracy of servo injection molding machines.
3. Efficient: Highly optimized clamping unit, more stable for high-speed opening and closing of molds, effectively shortening cycle times.servo energy injection molding machine.
4. High security: In line with the latest national security standard: GB22530-2008, it is more secure and reliable.
5. High stability: The dual cylinder injection molding design structure makes the screw backrest more stable during injection molding and has a longer service life.servo motor injection mould.
The structure of the servo injection molding machine was optimized through finite element analysis software to ensure that the frame of the servo injection molding machine meets the requirements of high stiffness, high strength, and fast and high impact production. Energy saving and efficient, suitable for the molding, processing, and production of various high-precision plastic products.

Technical Parameters	Model UP-230T
Injection Unit	A	B	C
Screw diameter (mm)	50	55	60
Shot Volume (cm3)	461	558	664
Injection weight (g)	415	502	598
injection pressure (Mpa)	169	142	121
Screw speed (rmp)	155
Clamping Unit
Clamping force (KN)	2300
Open stroke (mm)	475
Max Mold height (mm)	550
Min Mold height (mm)	220
Space between tie bars(mm)	530*530
Ejector force (KN)	70
Ejector stroke (mm)	135
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	22(21.2)
Heating power (KW)	14.2
Machine dimension (M)	5.8*1.55*2.15
Machine weight (T)	6.3
Oiltank cubage (L)	350

https://unionpower2023.en.made-in-china.com/company-Ningbo-Union-Power-Machinery-Co-Ltd-.html
FAQ
1: Are you a trading company or a manufactory?
We are a manufactory, we supply the factory price with good
quality, welcome to visit !
2:Do you have QC or any safety standards for your plastic injection molding machine?
yes,we have established a highly strict quality control department to guanrantee good quality.
3:Why choose our plastic injection molding machine?
High quality with competitive price
4::How about quality control in your factory?
"Quality is first, Customers are friends".
5:Can you help us with the shipment of this machine ?
Yes , with honor ,we have our special shipment company which
already cooperate

---
